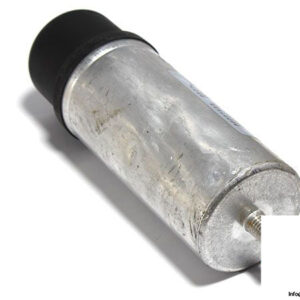

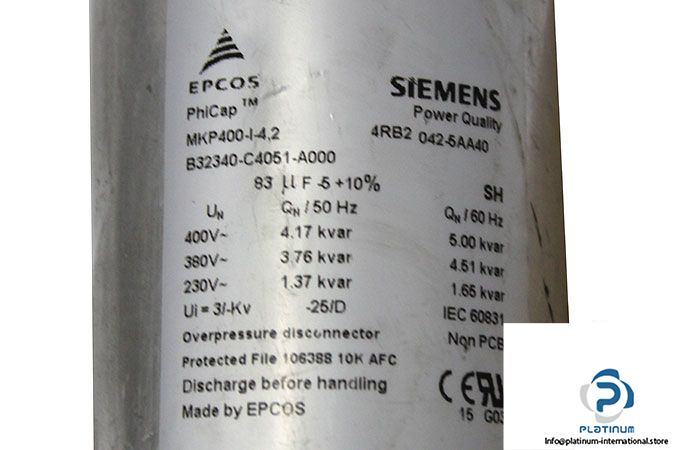

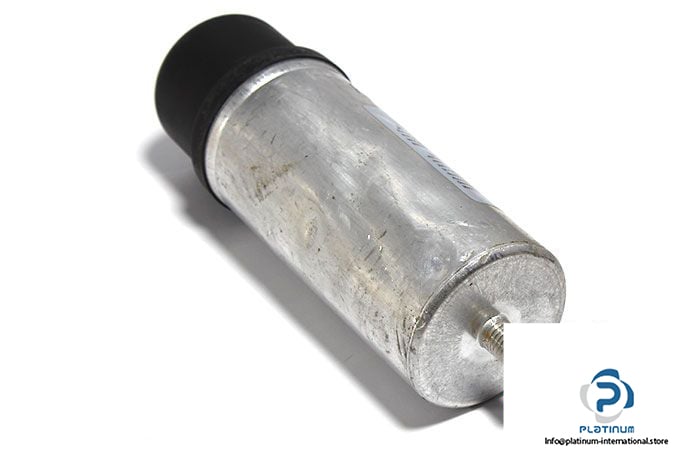

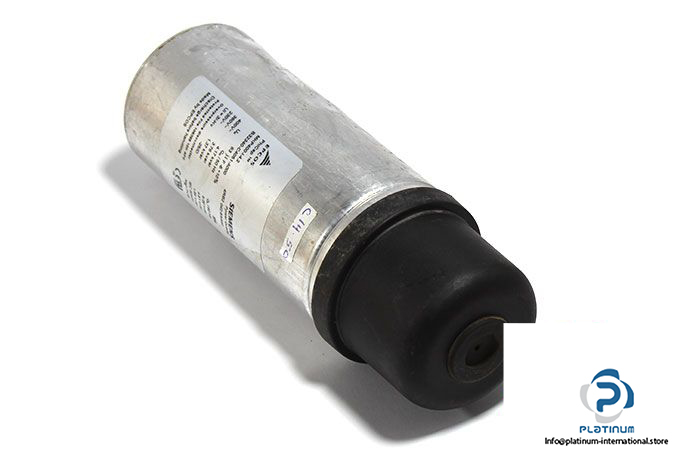

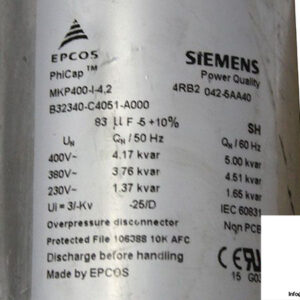

Siemens Epcos TDK B32340-C4051-A000 Film Capacitor
The Siemens Epcos TDK B32340C4051A000 Film Capacitor is a high-quality power capacitor designed for reactive power compensation and AC filtering applications. Built for long service life and stable electrical performance, it operates reliably under industrial temperature and frequency conditions.
Manufacturer: Siemens Epcos TDK
Type: Film Capacitor
Model: B32340-C4051-A000
Series: MKP400-I-4, 2
Reference No.: 4RB2 042-5AA40
Technical Information
- Rated Voltage (VR): 400 / 380 / 230 VAC
- Rated Capacitance (CR): 83 µF
- Rated Power (QR): 5 / 4.51 / 1.65 KVAR at 60 Hz; 4.17 / 3.76 / 1.37 KVAR at 50 Hz
- Rated Frequency: 50 / 60 Hz
- Operating Temperature: -25 / 55 °C
- Diameter: 63.5 mm
- Height: 142 mm
