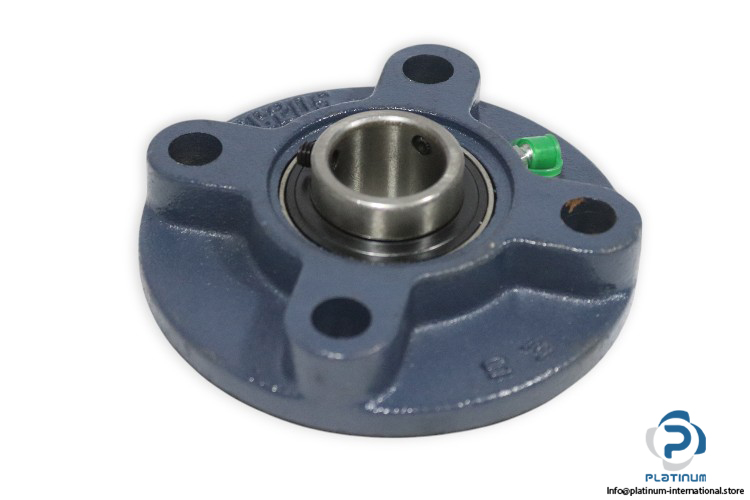

ES UCFC 205 Round Flange Ball Bearing Unit
The ES UCFC 205 Round Flange Ball Bearing Unit is a durable and versatile solution designed for industrial applications. It includes the reliable UC20S bearing housed in the FC205 flange housing, ensuring smooth operation and long-lasting performance. With precise dimensions and robust construction, this unit is ideal for high-demand mechanical systems.
🔧 Technical Specifications:

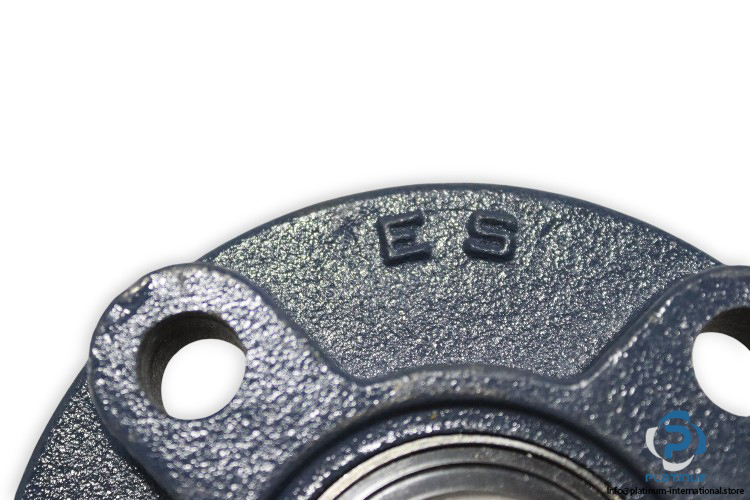

- Manufacturer: ES
- Type: Round Flange Ball Bearing Unit
- Model: UCFC 205

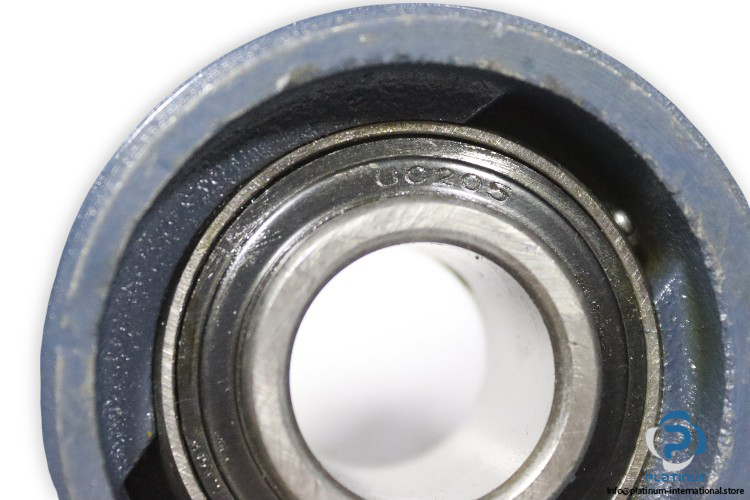

- Bearing Number: UC20S

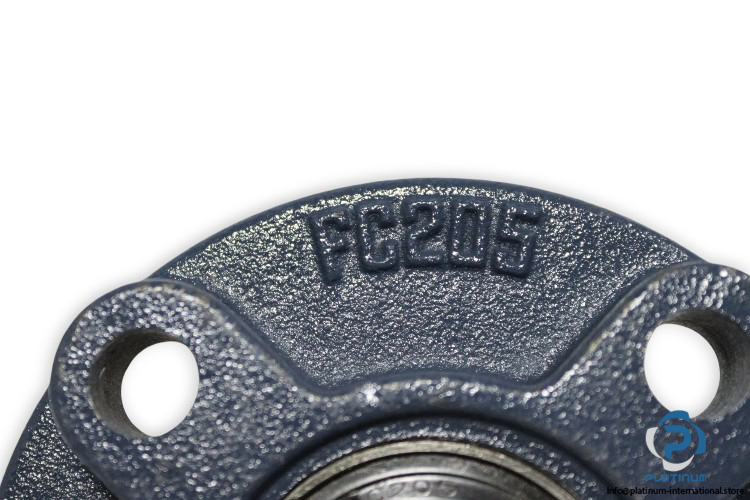

- Housing Number: FC205
- Bore Diameter (d): 25 mm
- Height Flange: 115 mm
- Total Height Unit: 29.8 mm
- Pitch Diameter of Attachment Bolts (p): 90 mm
- Width: 34.1 mm
- Height Housing: 21 mm
The UCFC 205 offers excellent load-bearing capacity and reliable operation for various applications. Its round flange design allows for easy installation and maintenance in demanding industrial environments.
