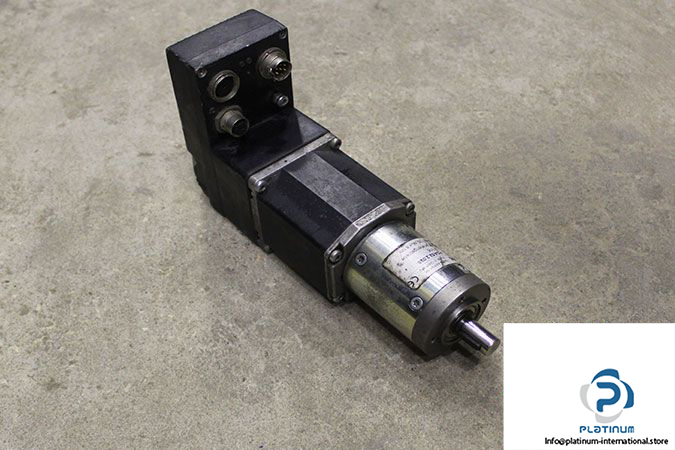

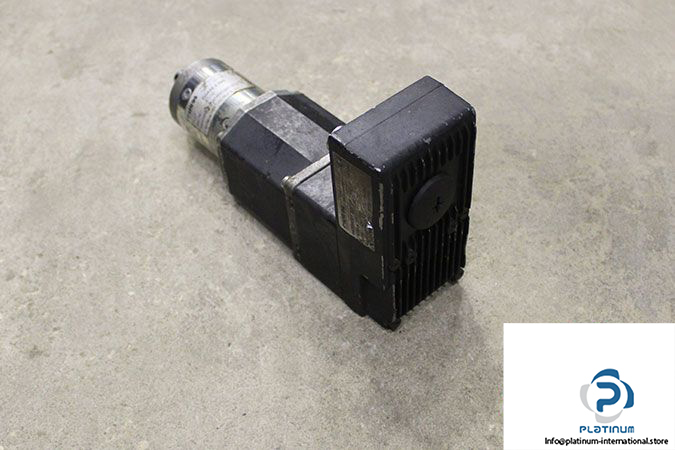

ESITRON ESIMOT6/1.320.01 BRUSHLESS SERVO MOTOR WITH PLANETARY GEARBOX
This compact and efficient brushless servo motor from Esitron is equipped with a robust planetary gearbox, providing reliable torque and speed control for automation and motion control applications. With IP64 protection and integrated encoders, it ensures precision and durability in demanding industrial environments.
Manufacturer: Esitron
Type: Brushless Servo Motor

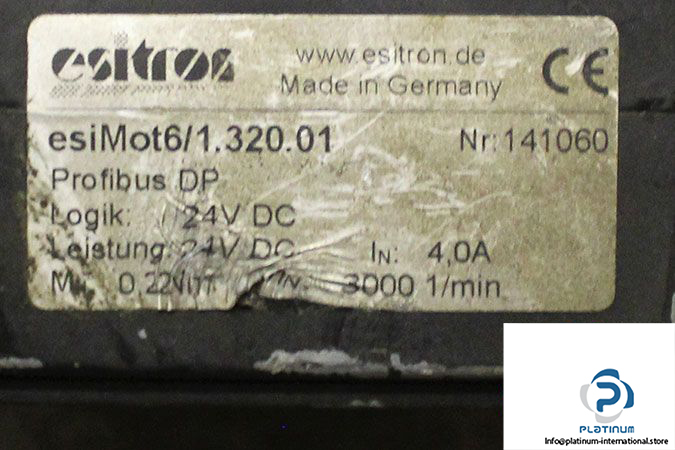

Model: esiMot6/1.320.01
Part No.: 141060
Motor Technical Information
- Size: 6/1
- Rated Voltage: 24 VDC
- Motor Power (S3): 120 W
- Rated Power: 70 W
- Nominal Torque: 0.22 Nm
- Impulse Torque: 0.5 Nm
- Rated Speed: 3000 min»¹
- Rated Current: 4 A
- Peak Current: 14 A
- Protection Class: IP64
- Absolute Encoder: 188 (Profibus DP)
- Incremental Encoder: 148
- Address Switches: With Address Switches
Planetary Gearbox (Attached)

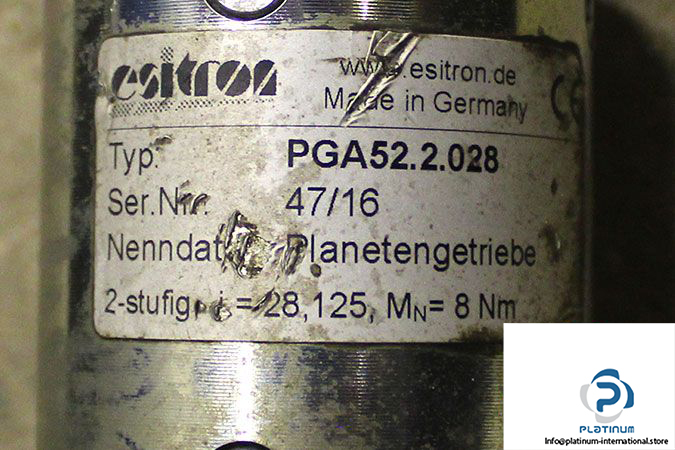

Model: Esitron PGA52.2.028
- Ratio: 28.125
- Stages: 2
- Rated Torque: 8 Nm
- Max. Driving Torque: 24 Nm
- Play: 50²
- Efficiency: 81%
- Max. Axial Load: 500 N
- Max. Radial Load: 350 N
