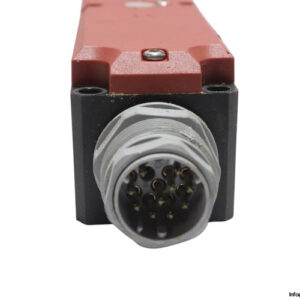

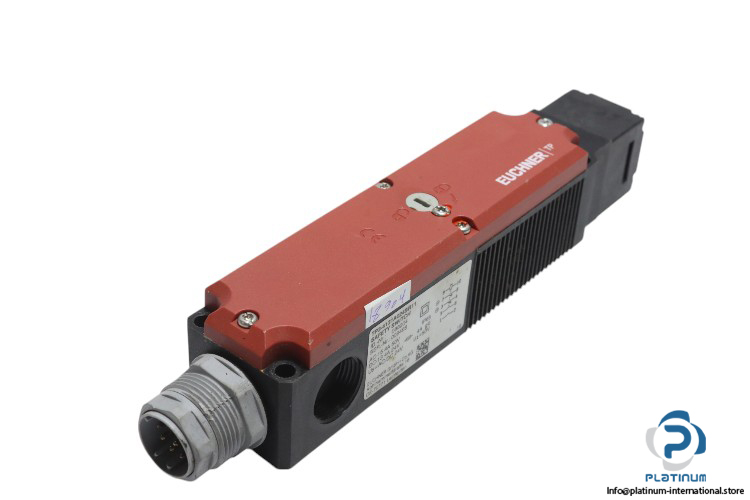

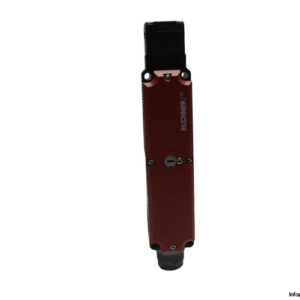

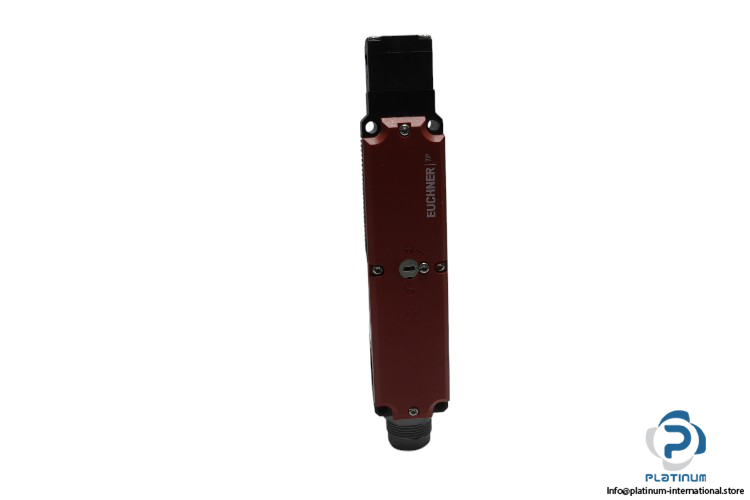

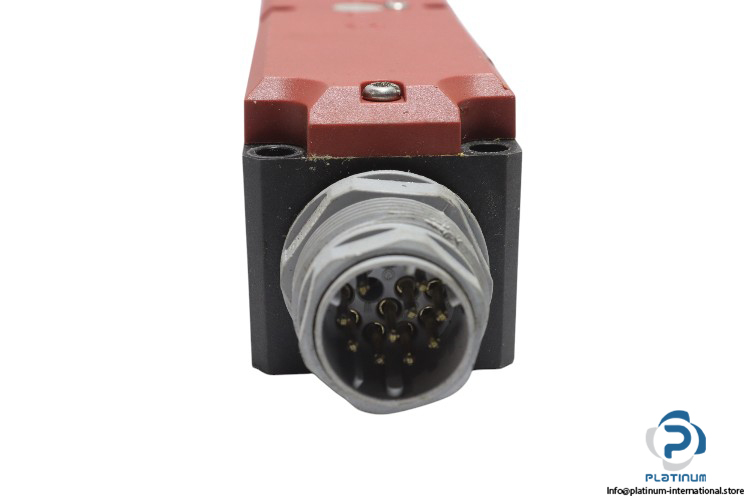

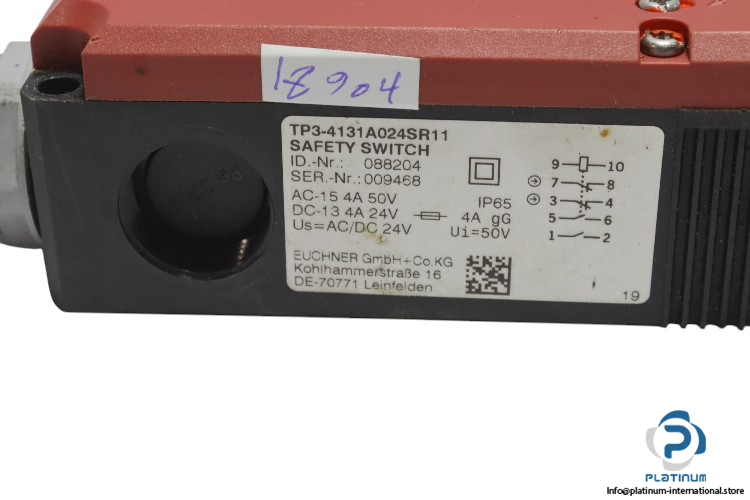

Euchner TP3-4131A024SR11 Safety Switch
The **Euchner TP3-4131A024SR11 Safety Switch** is designed for safety-critical applications, ensuring secure operation in industrial environments. With an **operating voltage of 24 V AC/DC** and **power consumption of 8 W**, this switch is highly efficient. The **rated insulation voltage** is **50 V**, and it has a **rated impulse withstand voltage** of **1.5 kV** for reliable protection against electrical surges. The switch supports **AC-15 utilization category** at **4 A 50 V** and **DC-13 utilization category** at **4 A 24 V**, making it suitable for a wide range of systems. Its **thermal rated current** is **4 A**, and the **contacts** are made of **silver alloy with gold flashing**, ensuring excellent conductivity. The **reinforced thermoplastic housing** provides durability, while the **locking force** is **1300 N (Fmax)** with a **locking force FZh** of **1000 N**. The switch complies with the **EN 60947-5-1 standard** and features an **IP65 protection class**, offering high resistance to dust and water ingress. It operates in an **ambient temperature range of -20 to +55 °C**, making it versatile for use in various environments.
- Manufacturer: Euchner
- Type: Safety Switch
- Model: TP3-4131A024SR11
Technical Information
- Operating Voltage: 24 V AC/DC
- Power Consumption: 8 W
- Rated Insulation Voltage (Ui): 50 V
- Rated Impulse Withstand Voltage (Uimp): 1.5 kV

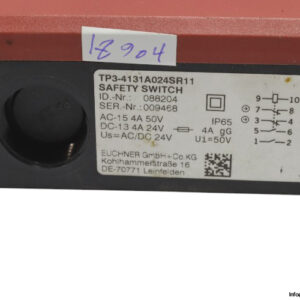

- Utilization Category: AC-15, 4 A 50 V; DC-13, 4 A 24 V
- Thermal Rated Current (Ith): 4 A
- Contact Material: Silver alloy, gold flashed
- Housing Material: Reinforced thermoplastic
- Locking Force Fmax: 1300 N
- Locking Force FZh: 1000 N

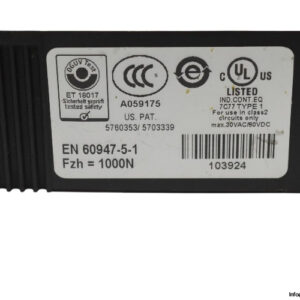

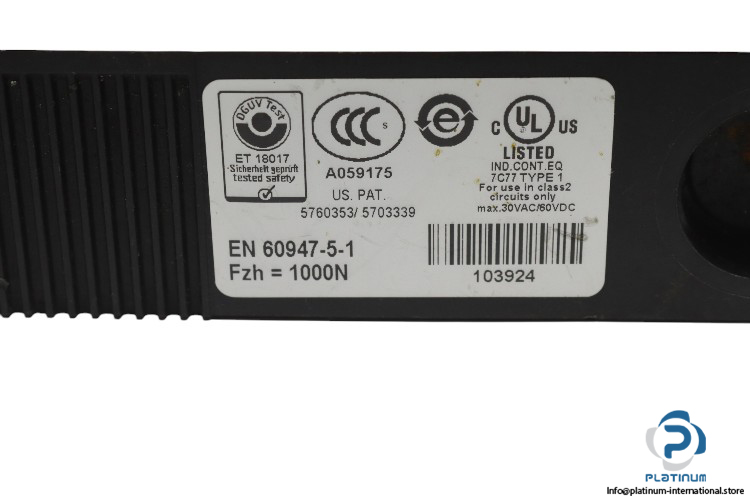

- Standard: EN 60947-5-1
- Degree of Protection: IP65
- Ambient Temperature: -20 to +55 °C
The **Euchner TP3-4131A024SR11 Safety Switch** is built to meet the highest safety standards, ensuring reliable performance and protection in industrial automation and safety-critical applications.
