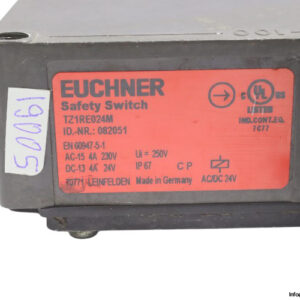

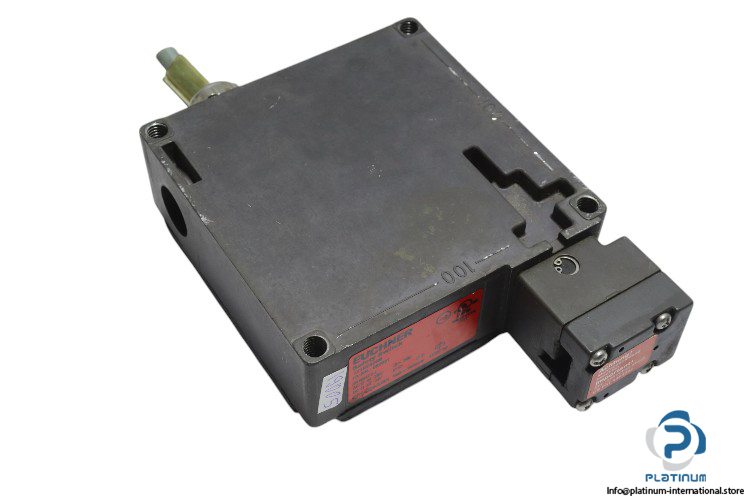

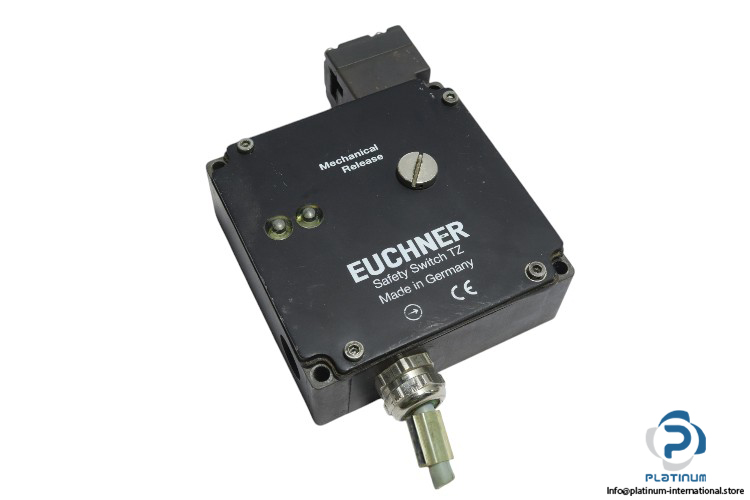

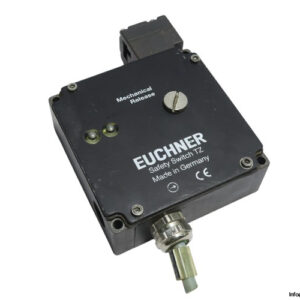

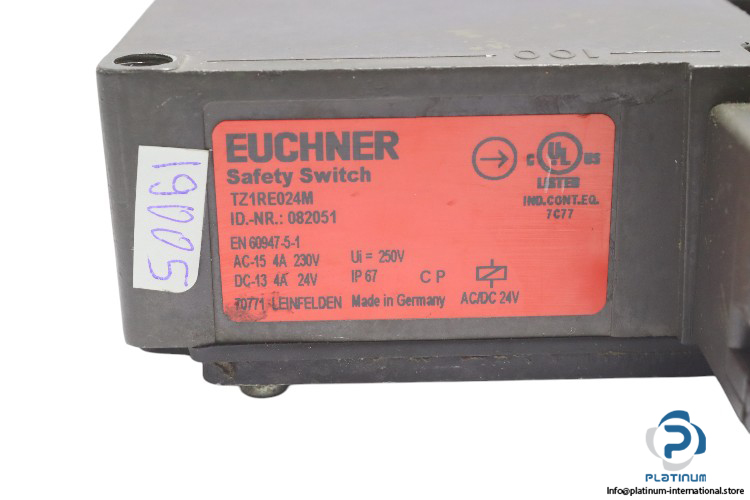

Euchner TZ1RE024M Safety Switch
The Euchner TZ1RE024M Safety Switch is designed for high-performance safety applications, offering reliable performance in machinery and automation systems. With its robust construction and advanced features, it ensures the safety of both operators and machinery in various industrial environments.
- Manufacturer: Euchner
- Type: Safety Switch
- Model: TZ1RE024M
- Order No.: 082051
Technical Information
- Operating Voltage, Current at (AC-15): 230 V, 4 A
- Operating Voltage, Current at (DC-13): 24 V, 4 A
- Rated Insulation Voltage Ui: 250 V
- Rated Impulse Withstand Voltage U imp: 2.5 Kv
- Power Consumption: 10 W
- Short Circuit Protection: 4 A
- Locking Force Fzh: 1500 N
- No. of Door Position NO Contacts: 1
- No. of Guard Lock Monitoring NO Contacts: 1
- No. of Door Position Positively Driven Contacts: 1
- No. of Guard Lock Monitoring Positively Driven Contacts: 1
- Protection Class: IP67
- Ambient Temperature Operation: -25 to 80 °C
- Material: Contact – Silver alloy, gold flashed; Housing – Anodized die-cast alloy
- Connection Type: 1 x M20 X 1.5
Engineered to provide maximum safety, the Euchner TZ1RE024M Safety Switch ensures reliable operation in critical environments, making it perfect for safety applications in various industrial sectors.
