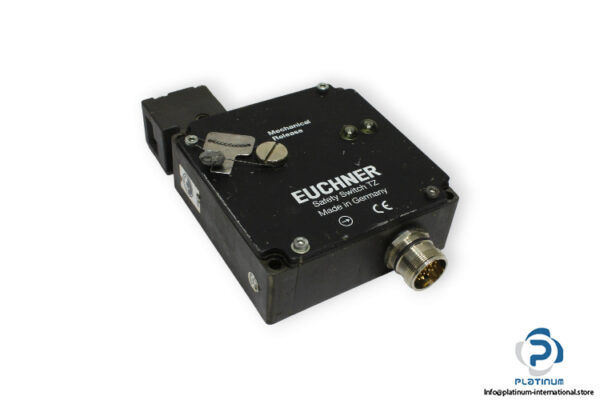

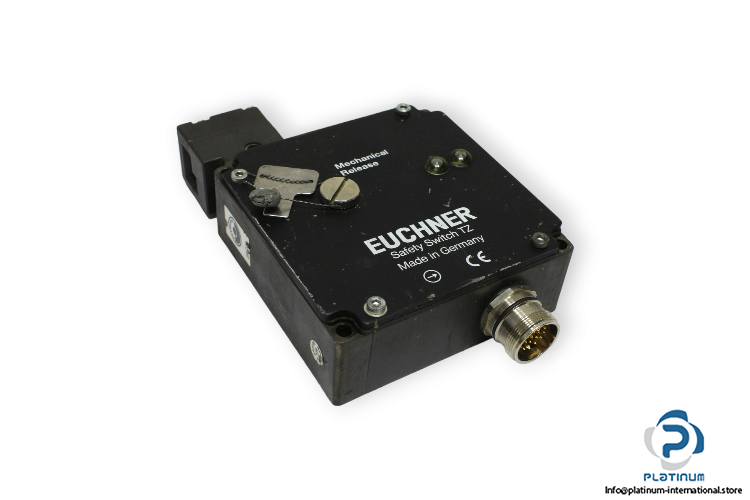

Manufacturer: Euchner
Type: Safety Switch

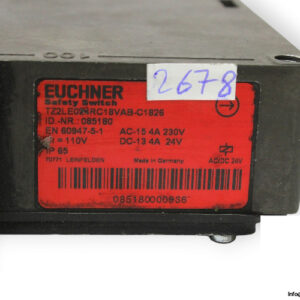

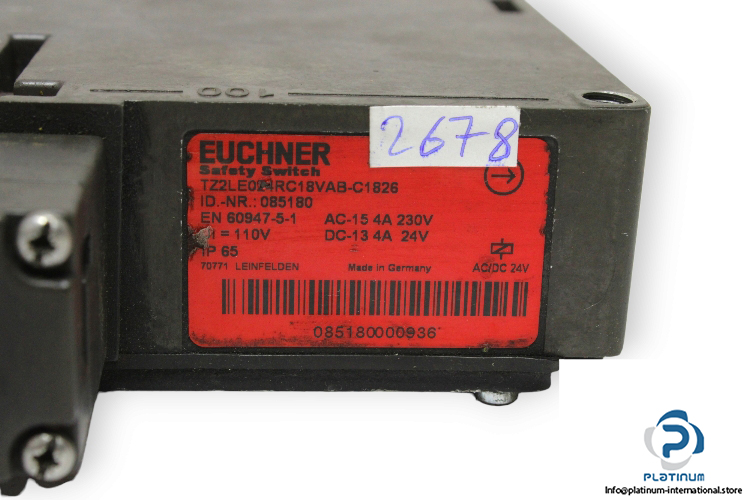

Model: TZ2LE024RC18VABC1826
ID No: 085180

Rated Insulation Voltage Ui: 110 V DC
Rated Impulse Withstand Voltage Uimp: 1.5 kV
Power Consumption: 10 W
Solenoid Operating Voltage: 24 V AC/DC
Connection Type: 1 X Plug Connector RC18, 18 Pin + PE
Number of Doors Position NO Contacts: 1
Number of Guard Lock Monitoring NO Contacts:
Number of Door Position Positively Driven Contacts: 2
Number of Guard Lock Monitoring Positively Driven Contacts: 2
Switching Capacity: AC-15: 4A 230V, DC-13: 4A 24V
Witching Principle: Slow-Action Switching Contact
Degree Of Protection: IP65
Ambient Temperature: -25 … +80 °C
Material: Contact: Silver Alloy, Gold Flashed / Housing: Anodized Die-Cast Alloy
