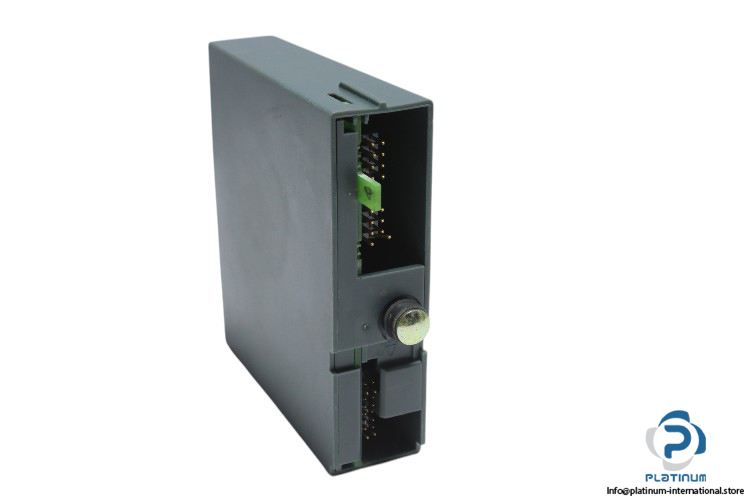

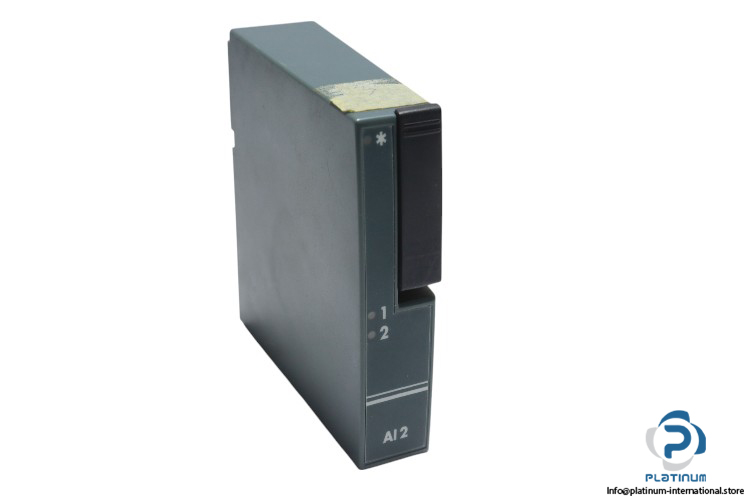

Eurotherm 2500M/AI2 Analog Input Module
The Eurotherm 2500M/AI2 Analog Input Module offers versatile and reliable analog input capabilities for a wide range of industrial applications. Designed to support multiple input types including TC, RTD, mA, mV, Potentiometer, and more, this module ensures high precision and flexibility in measurement.
- Manufacturer: Eurotherm
- Type: Analog Input Module
- Model: 2500M/AI2

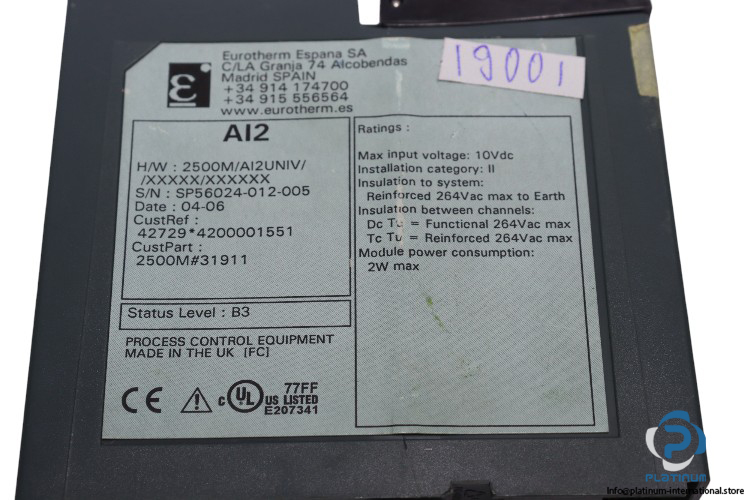

- Part No.: 2500M/AI2UNIV/XXXXX/XXXXXX
Technical Information
- Input Voltage: 10 V DC
- No. of Channels: 2
- Input Types: TC, RTD, Volts, mA, mV, Potentiometer, Pyrometer, Zirconia probe
- Functional Voltage: 264 V AC
- Voltage Range: -150mV to +150mV at input impedance >100M„¦
- Current Range: -22mA to +22mA with 5„¦ burden in the Terminal Unit
- Series Mode Rejection: 60dB (50Hz to 60Hz, 1mA rms)
- Common Mode Rejection: 120dB (50Hz to 5kHz, 50V rms)
- Current Consumption: 100mA max
- Power Consumption: 2 W max.
- Ohms Range: 0 to 600 ohm 3- or 4-wire lead compensation
- Resolution: Better than 0.001% of range
- Linearity: Better than 0.003% of range
- Input Filtering: OFF to 999.9 seconds
- Ambient Temperature: -10 to +70°C
This module is ideal for precise industrial measurements and applications, providing superior performance with exceptional linearity, resolution, and signal rejection.
