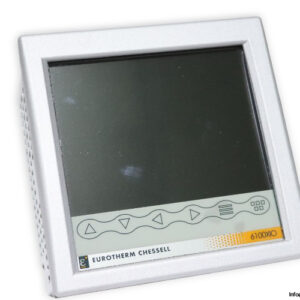

Eurotherm Chessell 6100XIO Paperless Graphic Recorder

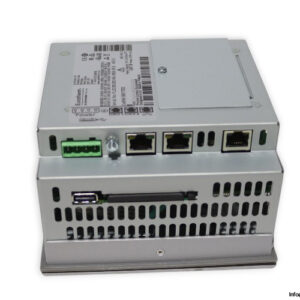

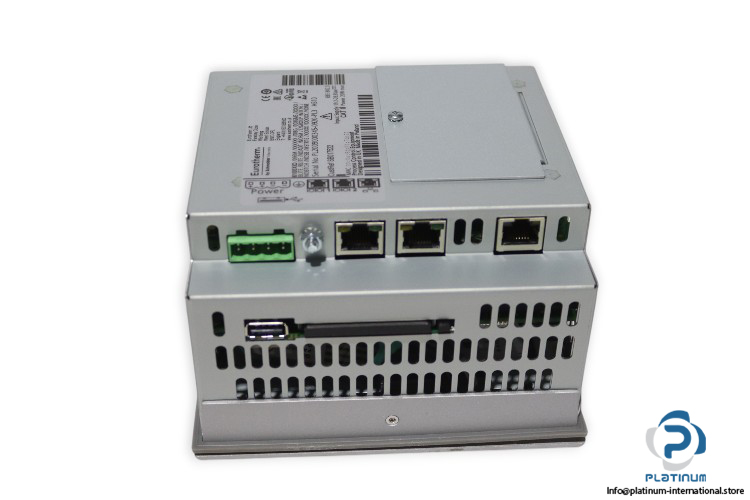

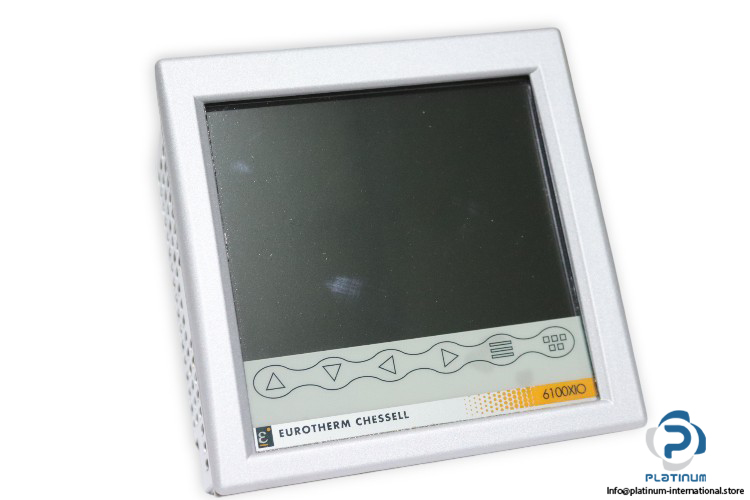

The Eurotherm Chessell 6100XIO by Schneider Electric is a high-performance paperless graphic recorder with a 100 mm TFT 1/4 VGA display. Built for industrial monitoring and data acquisition, it offers flexible communication, secure recording, and efficient process visualization in compliance with demanding standards.
Manufacturer: Eurotherm Chessell by Schneider Electric
Type: Paperless Graphic Recorder (100 mm TFT 1/4 VGA Display)

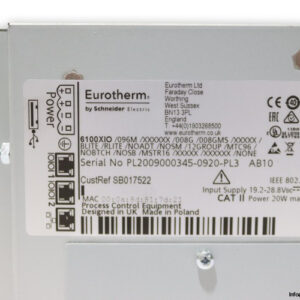

Model: 6100XIO/096M/XXXXXX/008G/008GMS/XXXXX/BLITE/RLITE/NOADT/NOSM/12GROUP/MTC96/NOBTCH/NOSB/MSTR16/XXXXX/XXXXXX/NONE

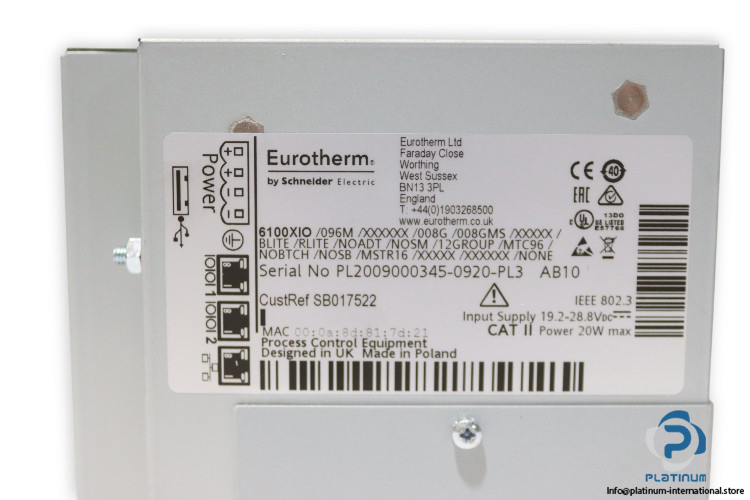

Serial No.: PL2009000345-0920-PL3 AB10
Cust Ref: SB017522
So_li: 821584/10
Code: AB10
MAC: 00:0a:8d:81:7d:21
Technical information
- Input Supply: 19.2 to 28.8 V DC
- Power: 20 W max
- Graphic Display: 5.5 inch
- Protection: IP65
- Modbus: Master/Slave
- Recording Speed: 8 Hz
- Network Addressing: DHCP, Boot P, Fixed IP
- Inrush Current: 10 A max
- User Termination: 4-way connector
- Operating Current (at 24 V): Small frame = 0.8 A; Large frame = 1 A
- Ripple: 1 V max
- Operating Temperature: 0 to 50 °C
- Internal Memory: 096M (96 MB for history)
- Memory Card Size: 008G (8 GB CF Card)
- USB Memory Stick Size: 008GMS (8 GB USB Memory Stick)
- Warranty: Standard Warranty
- Bridge: BLITE (Bridge Lite, standard)
- Review and Quick Chart: RLITE (standard)
- Auditor: NOADT (None)
- Security Manager: NOSM (None)
- Groups: 12GROUP (12 groups)
- Maths, Totalisers and Counters: MTC96 (96 virtual channels)
- Batch: NOBATCH (None)
- Screen Builder: NOSB (None)
- Master Comms: MSTR16 (Modbus Master Comms for 16 Slaves, standard)
