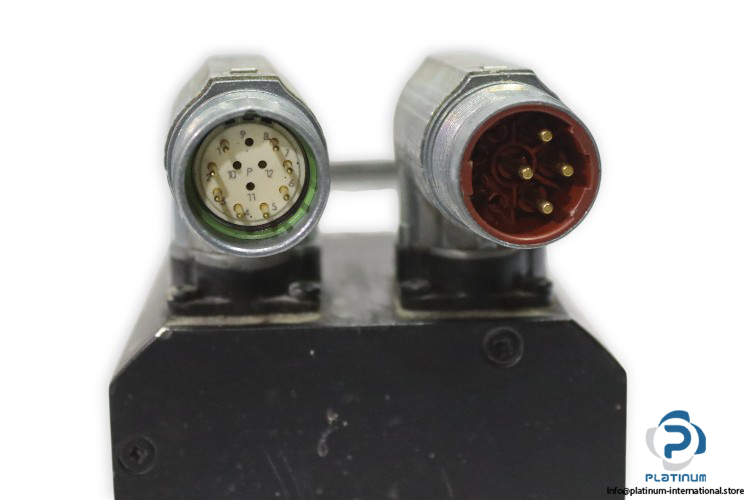

EUROTHERM ANTRIEBE ACM2N 0220-4/1-3 AC Servomotor

The EUROTHERM ANTRIEBE ACM2N 0220-4/1-3 is a high-performance AC servomotor designed for precise motion control in automation systems. With robust torque, high speed, and reliable thermal protection, it ensures long-lasting operation in demanding industrial environments.

Manufacturer: EUROTHERM ANTRIEBE
Type: AC Servomotor
Model: ACM2N 0220-4/1-3
Serial No.: 0328-01245 *

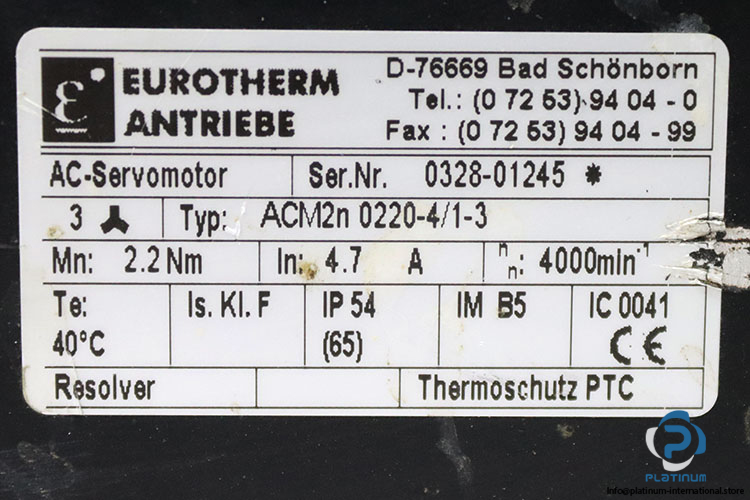

Technical information

• Rated Torque (Mn): 2.2 Nm
• Current: 4.7 A
• Speed: 4000 min»¹ (rpm)
• Ambient Temperature: 40 °C
• Insulation Class: F
• Protection Class: IP54 (up to IP65)
• Mounting: IM B5
• Cooling Method: IC0041
• Position Feedback: Resolver
• Protection: Thermoschutz PTC (thermal protection)
