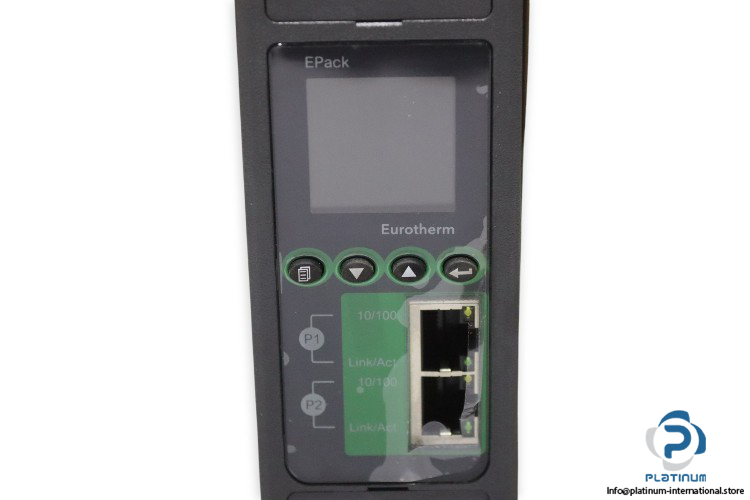

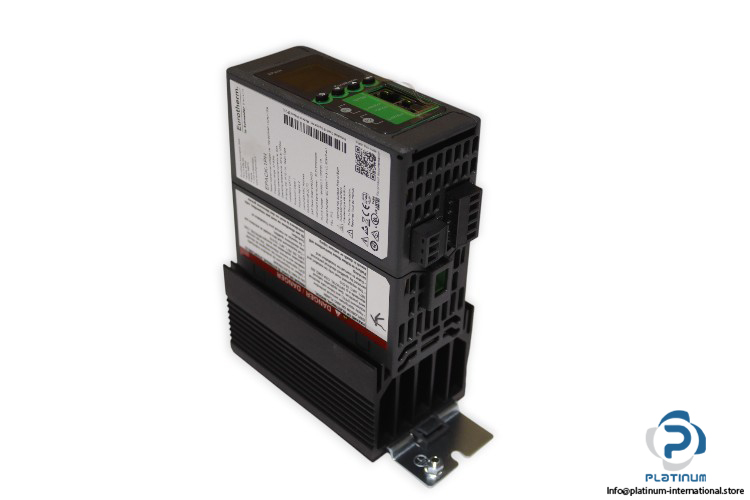

Eurotherm Schneider Electric EPACK Programmable Controller
The Eurotherm / Schneider Electric EPACK controller is a compact and powerful solution for advanced industrial power and process control. Engineered for efficiency, it provides precise current handling, versatile voltage compatibility, and reliable protection, making it suitable for demanding automation and power regulation tasks.

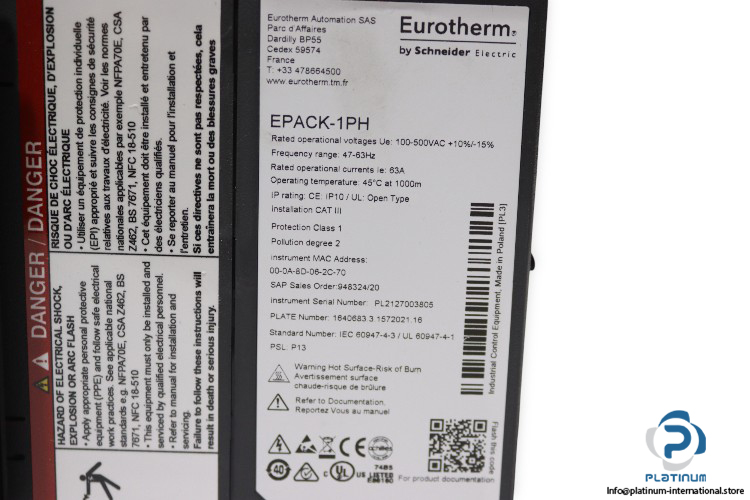

Manufacturer: Eurotherm / Schneider Electric (Invensys)
Type: Programmable Controller / Power Controller

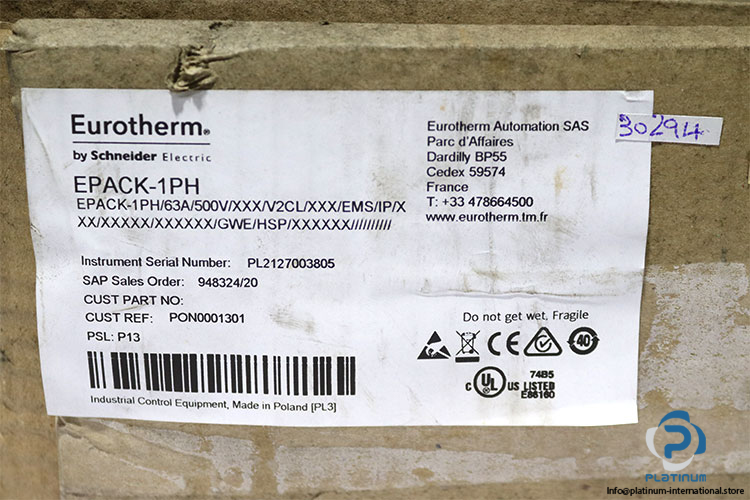

Model: EPACK-1PH/63A/500V/XXX/V2CL/XXX/EMS/IP/XXX/XXXXX/XXXXXX/GWE/HSP/XXXXXX//////////
Serial No.: PL2127003805
Customer Ref. No.: PON0001301
MAC Address: 00-0A-BD-06-2C-70
Plate No.: 1640683 3 1572021.16
SO. No.: 948324/20
Series: EPACK
PSL: P13
Technical Information
- Rated Operational Voltage Ue: 100 to 500 V AC, 47“63 Hz, 20 VA
- Rated Operational Current Ie: 63 A
- Operating Temperature: 45°C at 1000 m
- Protection Degree: IP10 / UL: Open Type
- Relay Rating: (CO) 2 A, 250 V AC Resistive
