Eurotherm / Schneider Electric EPC3016 Programmable Controller
The Eurotherm / Schneider Electric EPC3016 is a high-performance programmable controller from the EPC3000 series, engineered for advanced process control with precise input and output management. Designed for efficiency and reliability, it ensures optimal performance in automation and industrial applications.
Manufacturer: Eurotherm / Schneider Electric
Type: Programmable Controller

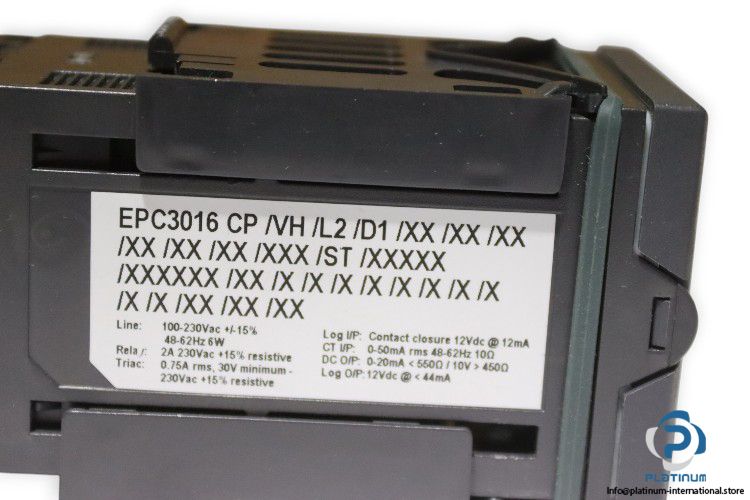

Model: EPC3016 CP/VH/L2/D1/XX/XX/XX/XX/XX/XX/XXX/ST/XXXXX/XXXXXX/XX/X/X/X/X/X/X/X/X/X/X/XX/XX/XX

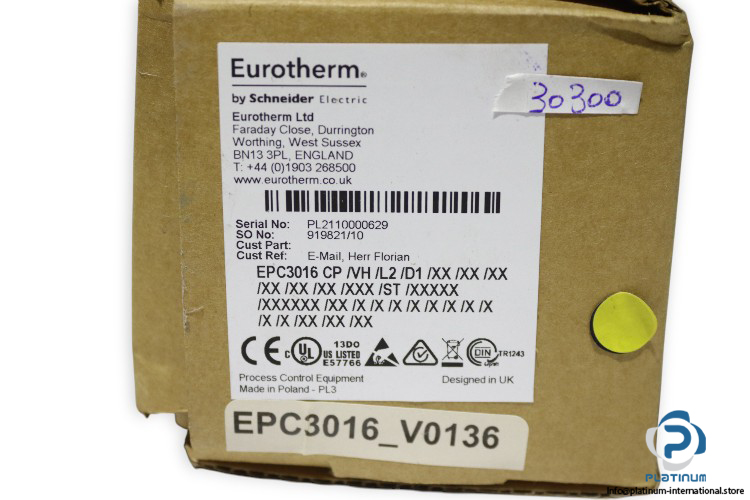

Serial No.: PL2110000629
SO. No.: 919821/10
Series: EPC3000 (EPC3008)
MNR: EPC3016_V0136
Technical Information
- Line Rating (Power Supply): 100 to 230 V AC, 48“62 Hz, 6 W
- Relay Rating: 2 A, 230 V AC resistive
- Triac Rating: 0.75 A rms, 30 V min / 230 V AC resistive
- Logic Input: Contact Closure 12 V DC at 12 mA
- CT Input: 0 to 50 mA, rms 48/62 Hz, 10 ohm
- Logic Output: 12 V DC at 44 mA
- DC Output: 0“20 mA less than 500 ohm
