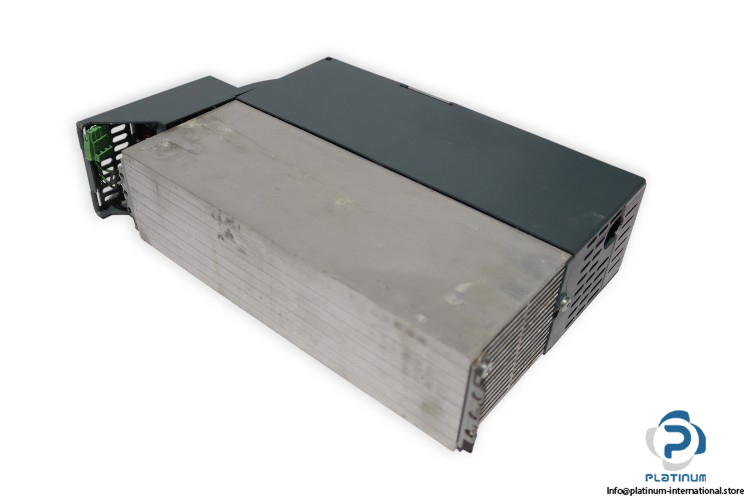

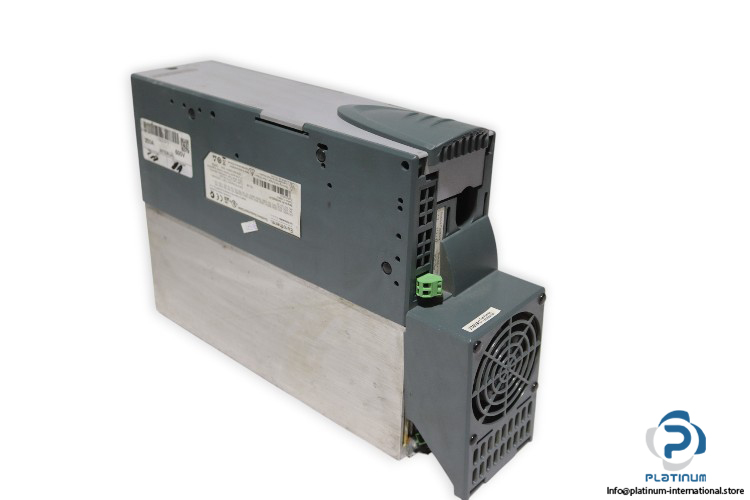

Eurotherm / Schneider Electric EPOWER 2PH Power Controller
The Eurotherm / Schneider Electric EPOWER/2PH-250A/600V/230V power controller is engineered for reliable power regulation in demanding industrial environments. With PROFIBUS DPV1 communication, advanced load management features, and robust 250 A current handling, it ensures efficiency, precision, and durability.
Manufacturer: Eurotherm / Schneider Electric
Type: Power Controller (2 PH)

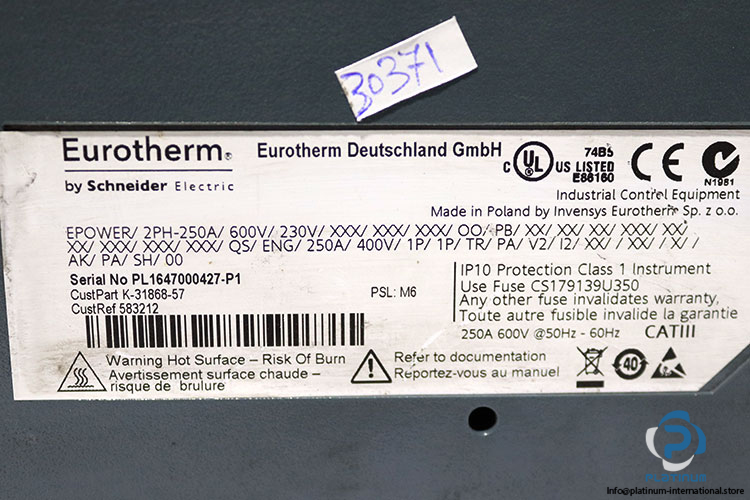

Model: EPOWER/2PH-250A/600V/230V/XXX/XXX/XXX/OO/PB/XX/XX/XX/XXX/XX/XX/XXX/XXX/XXX/QS/ENG/250A/400V/1P/1P/TR/PA/V2/I2/XX//XX//X//AK/PA/SH/00
Serial No.: PL1647000427-P1
Cust Part: K-31868-57
Cust Ref: 583212
Code: (PSL: M6)
Technical information
- Fuse: CS179139U350
- Voltage: 100 to 600 V (water cooled HPower only for 600 V) / Load voltage 400 V
- Current / Load Current: 250 A @ 230 V, 50“60 Hz
- Power Dissipation: 1.3 W per Amp per phase
- Protection Class: Class 1
- IP Rate: 10
- Warranty: Standard
- Option: OO, Unit with options and/or quick start definition
- Communications Protocol: PB, PROFIBUS DPV1 (with D-type connector)
- Quick Start: QS, Quick start config
- Language: English
- Load Configuration: 1P, Single phase
- Load Type: TR, Transformer primary
- Firing Mode: PA, Phase angle
- Feedback: V2, RMS load voltage squared
- Current Transfer Mode: I2, RMS load current squared transfer
- Digital Input 2 Function: AK, Alarm acknowledgement
- Alarm Relay Configuration: PA, Process alarms
- Load Management Configuration: SH, Sharing
