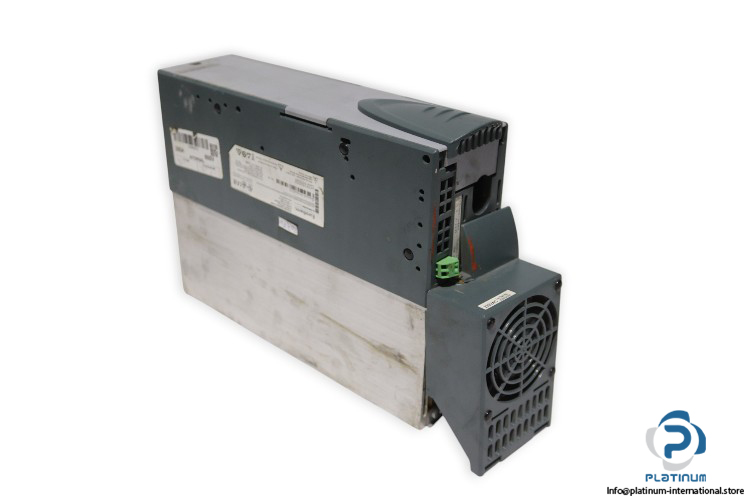

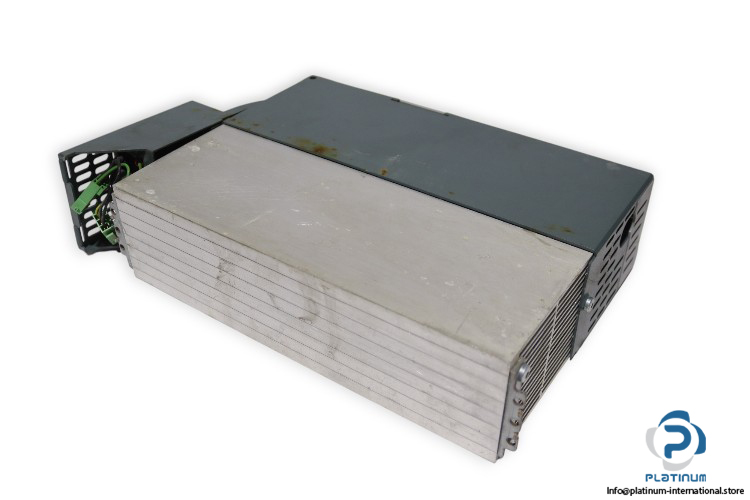

Eurotherm / Schneider Electric EPOWER/2PH-250A Power Controller
The Eurotherm / Schneider Electric EPOWER/2PH-250A is a powerful two-phase power controller designed for precise load management and reliable operation in demanding industrial environments. With Modbus TCP communication, optional I/O modules, and robust cooling support, it ensures efficiency and safe integration into automation systems.
Manufacturer: Eurotherm / Schneider Electric
Type: Power Controller (2 PH)

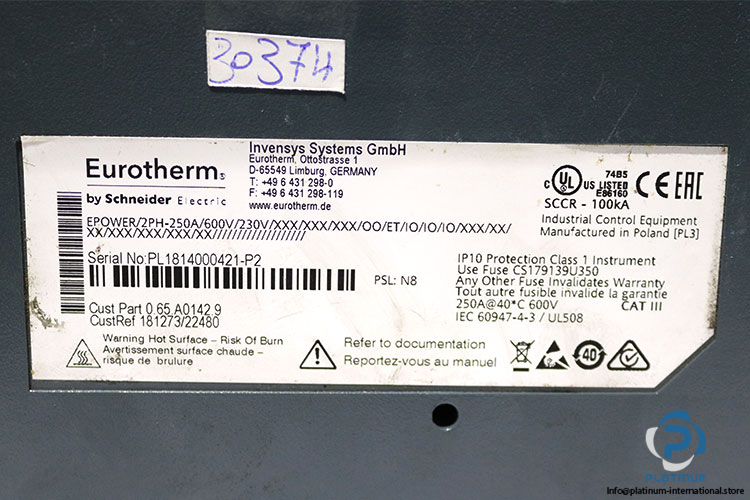

Model: EPOWER/2PH-250A/600V/230V/XXX/XXX/XXX/OO/ET/IO/IO/IO/XXX/XX/XX/XXX/XXX/XXX/XX///////////////////
Serial No.: PL1814000421-P2
Customer Part: 0.65.A0142.9
Customer Ref: 181273/22480
Code: (PSL: N8)
Technical information

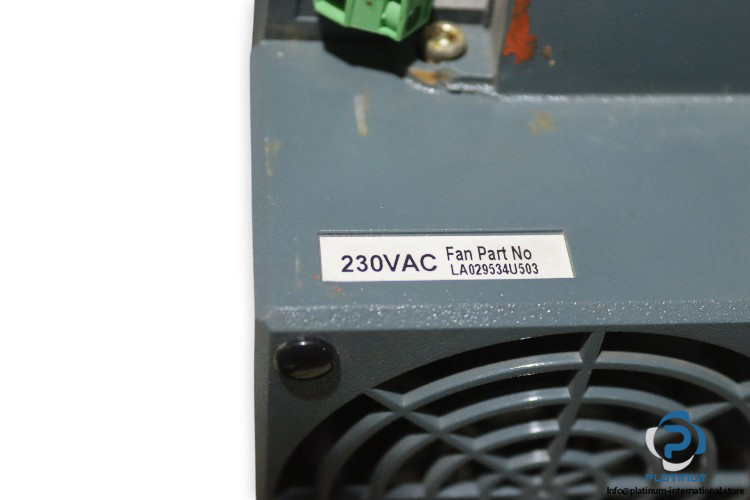

- Fan Part No.: LA029534U503, 230 V AC
- Use Fuse: CS179139U350
- Voltage: 600 V / 100 to 600 V (water cooled HPower are only for 600 V)
- Fan Supply: 230 V AC ≥ 160 A
- Current: 250 A @ 40 °C
- Power Dissipation: 1.3 W per Amp per phase
- Protection Class: Class 1
- IP Rate: 10
- Warranty: Standard
- Internal Use: None
- Option: XX None – end of code
- Option: 00 Unit with options and/or quick start definition
- Communications Protocol: ET Modbus TCP
- Modules: IO optional board
