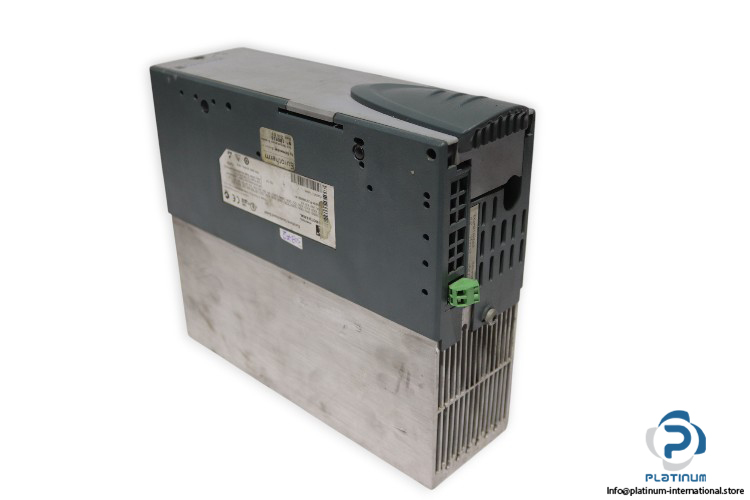

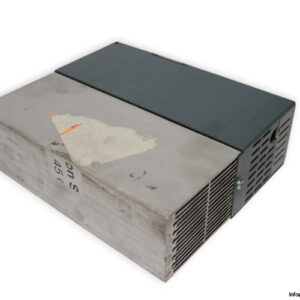

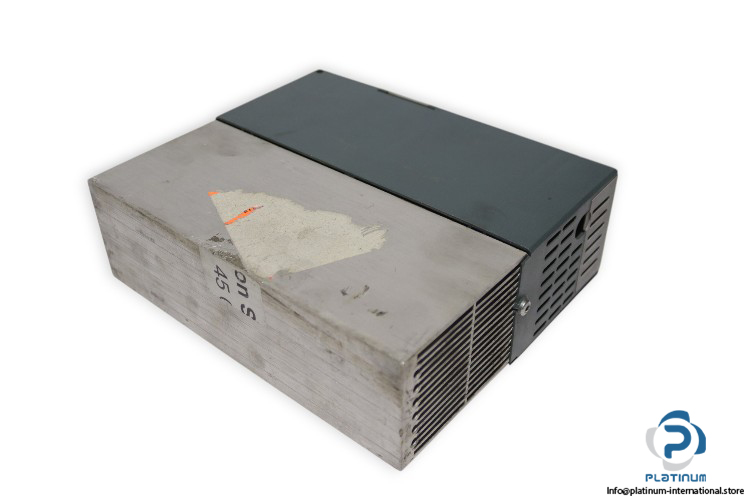

Eurotherm / Schneider Electric EPOWER 3PH-100A/600V Power Controller
The Eurotherm / Schneider Electric EPOWER 3PH-100A/600V is a high-performance three-phase power controller designed for precise power regulation in industrial systems. Engineered for flexibility and reliability, it provides advanced control functions, quick start configuration, and modular options for demanding applications.
Manufacturer: Eurotherm / Schneider Electric
Type: Power Controller (3 PH)

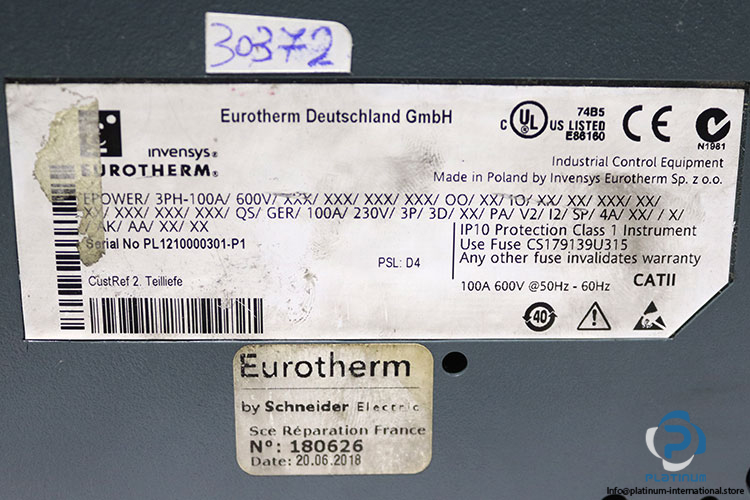

Model: EPOWER/3PH-100A/600V/XXX/XXX/XXX/XXX/OO/XX/IO/XX/XX/XXX/XX/XX/XXX/XXX/XXX/QS/GER/100A/230V/3P/3D/XX/PA/V2/I2/SP/4A/XX//X//AK/AA/XX/XX
Serial No.: PL1210000301-P1
Cust Ref: 2. Teilliefe
Code: (PSL: D4)
Technical information
- Use Fuse: CS179139U315
- Voltage: 600 V / 100“600 V (water-cooled HPower are only for 600 V)
- Current: 100 A
- Fan Supply: 230 V @ 50“60 Hz
- Power Dissipation: 1.3 W per Amp per phase
- Protection Class: Class 1
- IP Rate: 10
- Internal Use: XXX, None
- Option: XX, None “ end of code
- Option: OO, Unit with options and/or quick start definition
- Module: IO, IO optional board
- Quick Start: QS, Quick start config
- Language: GER, German
- Load Current (Nominal): 100 A
- Load Voltage (Nominal): 230 V
- Load Configuration: 3D Delta
- Firing Mode: PA Phase angle
- Feedback: V2 RMS load voltage squared
- Current Transfer Mode: I2 RMS load current squared transfer
- Analog Input: SP Setpoint
- Analog Input 1 Type: 4A (4“20 mA)
- Digital Input 2 Function: AK Alarm acknowledgement
- Alarm Relay Configuration: AA Any alarm
