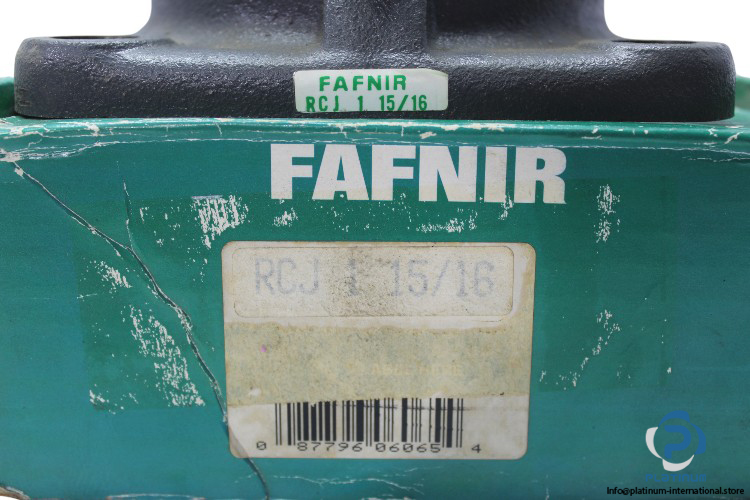

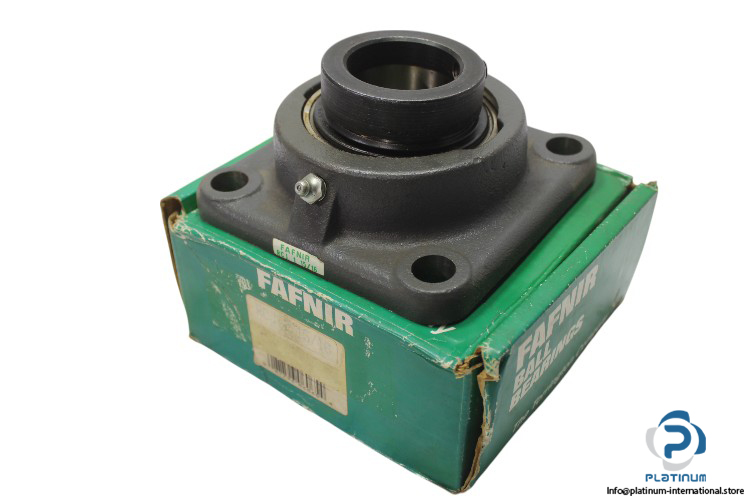

Fafnir Four-Bolt Flanged Mounted Bearing RCJ 1 15/16

The Fafnir Four-Bolt Flanged Mounted Bearing RCJ 1 15/16 is designed for efficient and reliable performance in industrial applications. With a robust housing, high load capacity, and precision seal, it ensures smooth operation under various conditions.

Manufacturer: Fafnir

Model: RCJ 1 15/16

Type: Four-Bolt Flanged Mounted Bearing

COMAS Part No.: 0.142.802.020.047

Bearing Designation: G1115KRRB TDCF

Technical Information:

• Bore Diameter (d): 1.93 in, 49 mm
• Total Length: 142.9 mm
• Housing Width: 42.9 mm
• Flange Thickness (A1): 14.3 mm
• Bolt Hole Spacing (J): 111.1 mm
• Bolt Hole Size (N): 16 mm
• Basic Dynamic Load Rating: 38900 N
• Basic Static Load Rating: 23200 N
• Seal Type: Shroud Seal
