Manufacturer: Schaeffler FAG

Type: Self-Aligning Ball Bearing with tapered bore

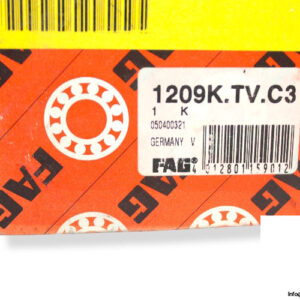

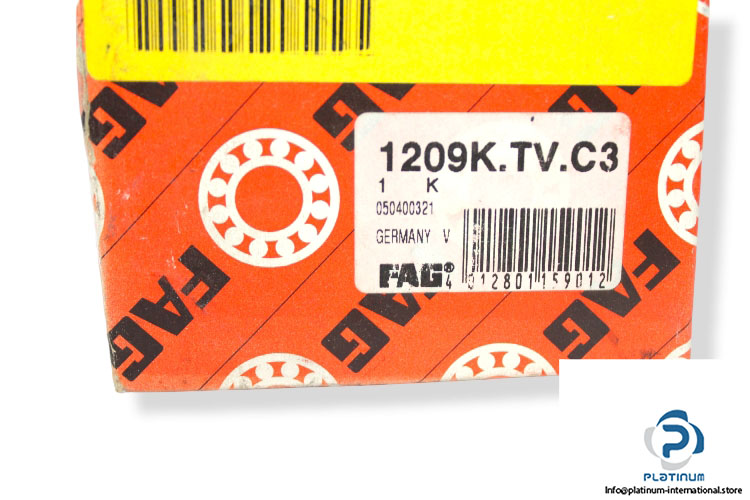

Model: 1209K.TV.C3

Replaces: 1209-K-TVH-C3

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 85 mm

Width B: 19 mm

Basic load ratings:

Dynamic C_r: 22000 N

Static C_0r: 7300 N

Fatigue load rating: 465 N

Limiting speed: 9300 rpm

Reference Speed: 8200 rpm

Cage: TVH ,solid cage made of glass-fiber reinforced polyamide PA66

Bore type: Tapered, taper 1:12

Radial internal clearance: Group 3 (C3)
