Manufacturer: Schaeffler FAG
Type: Self-Aligning Ball Bearing with tapered bore

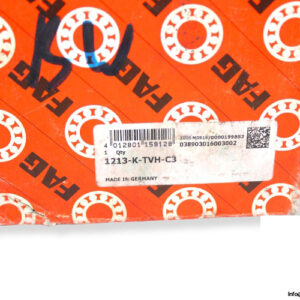

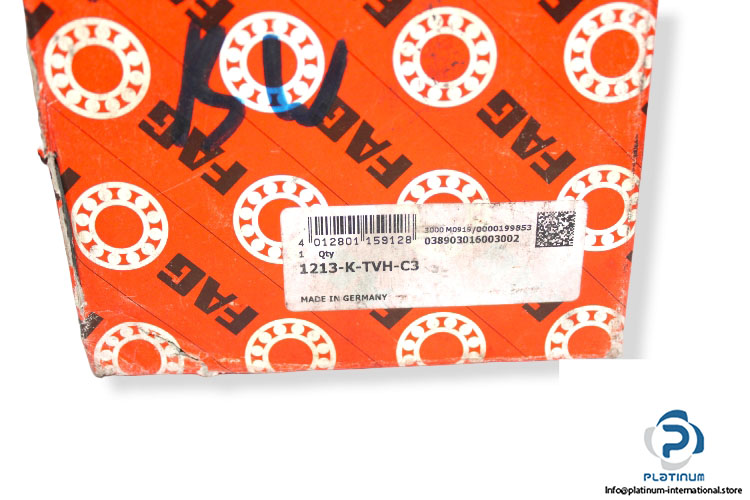

Model: 1213-K-TVH-C3
Replaces: 1213-K.TV.C3
Dimensions
Bore Diameter d: 65 mm
Outer diameter D: 120 mm
Width B: 23 mm
Basic load ratings:
Dynamic Cr: 31000 N
Static C0r: 12500 N
Fatigue load rating: 790 N
Limiting speed: 6500 rpm
Reference Speed: 5800 rpm
Cage: TVH ,solid cage made of glass-fiber reinforced polyamide PA66
Bore type: Tapered, taper 1:12
Radial internal clearance: Group 3 (C3)
