Manufacturer: Schaeffler FAG

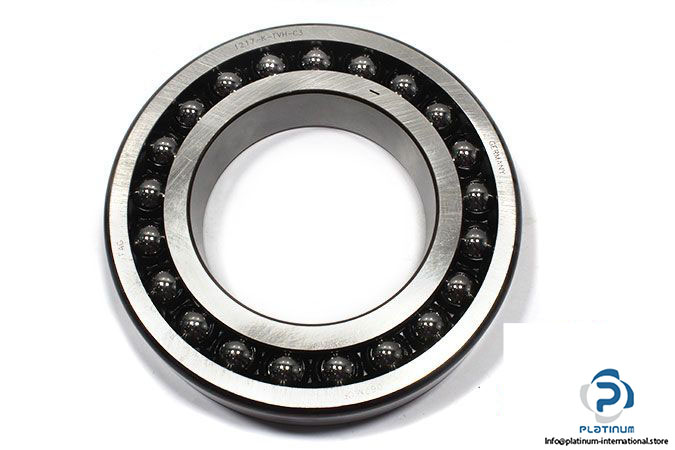

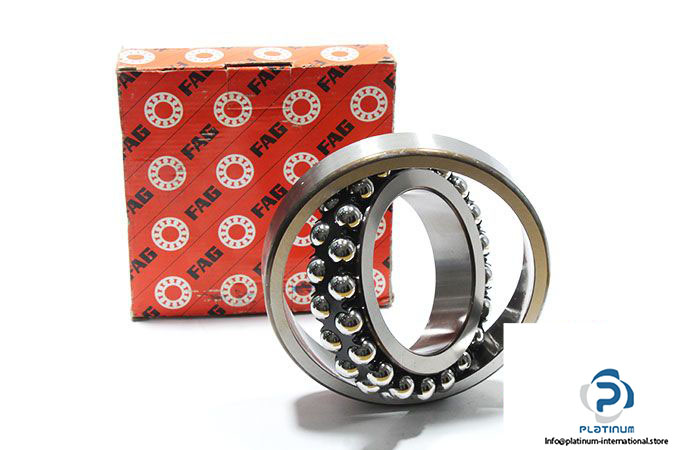

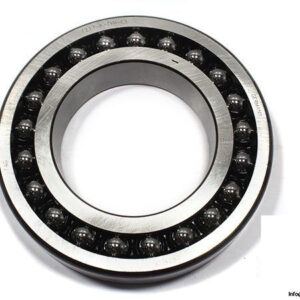

Type: Self-aligning ball bearing

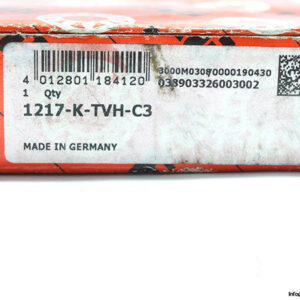

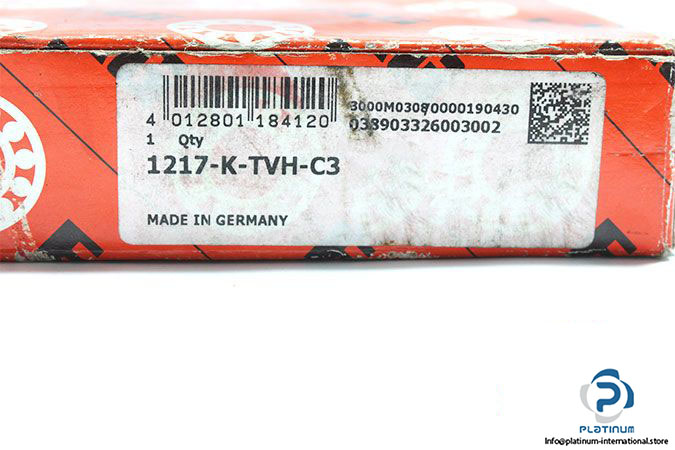

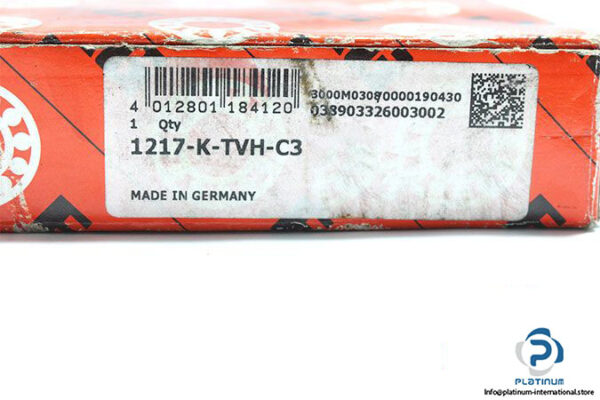

Model: 1217-K-TVH-C3

Part No: 1217

Bore Diameter d: 85 mm

Outer diameter D: 150 mm

Width B: 28 mm

Basic load ratings:

Dynamic C_r: 49,500 N

Static C_0r: 20,800 N

Fatigue load rating: 1,210 N

Limiting speed: 4,900 rpm

Reference Speed: 4,950 rpm

Bore Design: Tapered bore, taper 1:12

Cage: solid cage made of glass-fiber reinforced polyamide PA66

Weight: 2 kg
