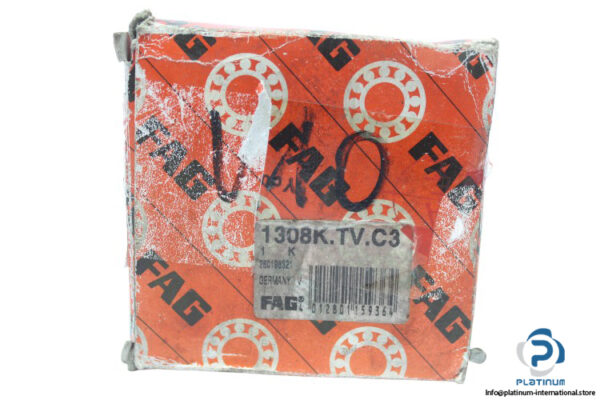

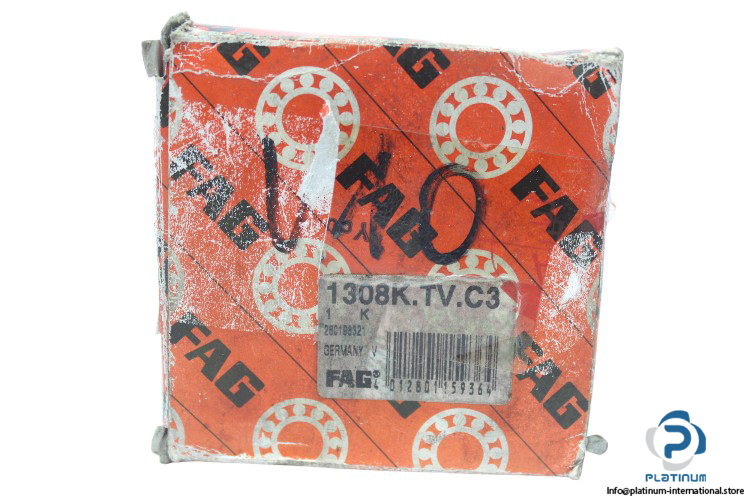

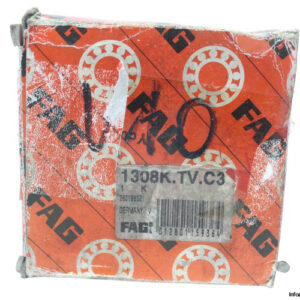

FAG 1308K.TV.C3 Self-Aligning Ball Bearing
The FAG 1308K.TV.C3 is a high-performance self-aligning ball bearing, designed to accommodate misalignment and reduce friction in rotating machinery. Featuring a tapered bore and glass-fiber reinforced PA66 cage, this bearing offers excellent durability, high-speed capability, and enhanced clearance for demanding applications.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing
Model: 1308K.TV.C3
Technical Information:
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 90 mm
- Width (B): 23 mm
- Dynamic Load Rating (Cr): 30,000 N
- Static Load Rating (C0r): 9,700 N
- Fatigue Load Rating: 610 N
- Limiting Speed: 8,600 1/min
- Reference Speed: 7,200 1/min
- Cage: TV, solid cage made of glass-fiber reinforced polyamide PA66
- Clearance: C3
- Bore Type: K, tapered bore taper 1:12
