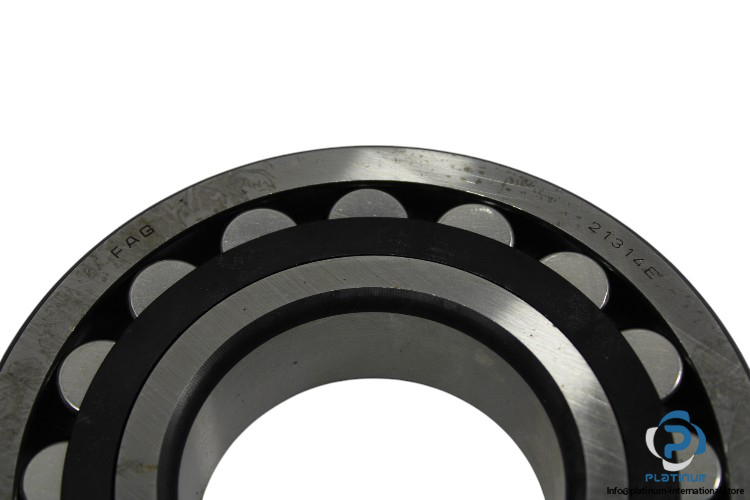

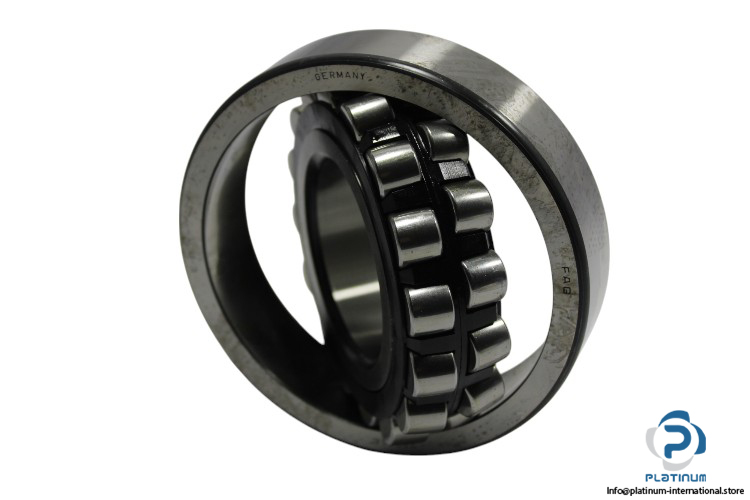

FAG 21314 E Spherical Roller Bearing

The FAG 21314 E Spherical Roller Bearing is designed for high-performance applications, offering excellent load-carrying capacity and durability. With a robust sheet metal cage and optimized internal design, this bearing ensures reliable operation under heavy radial and axial loads.

• Manufacturer: FAG
• Type: Spherical Roller Bearing
• Model: 21314 E

Technical Information

• Bore Diameter (d): 70 mm
• Outer Diameter (D): 150 mm
• Width: 35 mm
• Dynamic Load Rating: 250,000 N
• Static Load Rating: 270,000 N
• Fatigue Load Limit: 34,500 N
• Limiting Speed: 6,200 1/min
• Reference Speed: 3,950 1/min
• Cage Material: Sheet Metal Cage
