Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

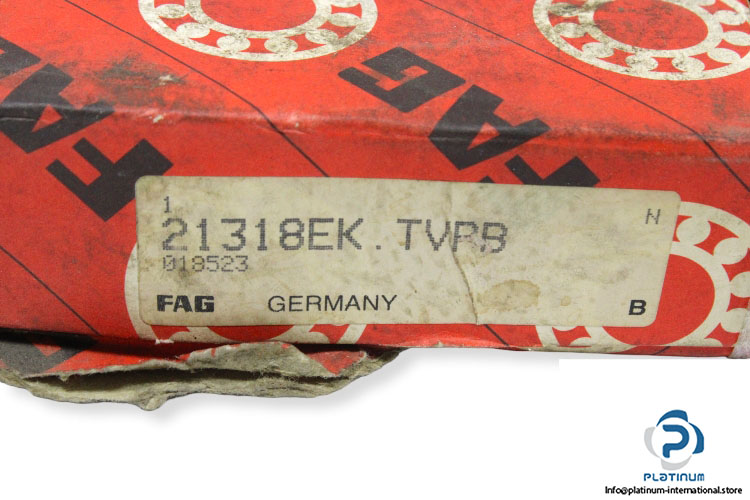

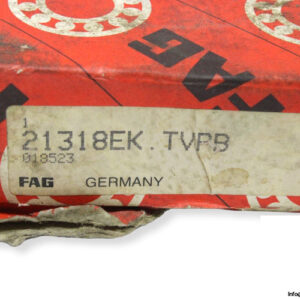

Model: 21318 EK.TVPB

Replaces: 21318-E1-XL-K-TVPB, 21318E1K.TVPB

Dimensions:

Bore Diameter d: 90 mm

Outer diameter D: 190 mm

Width: 43 mm

Bore type: Taper 1:12

Dynamic load rating: 380000 N

Static load rating: 415000 N

Fatigue load limit: 48500 N

limiting speed: 4850 RPM

Reference speed: 3600 RPM

Cage material: Plastic cage

Operating temperature: -30 … +120 °C
