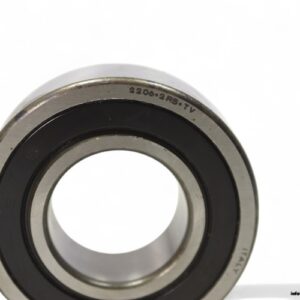

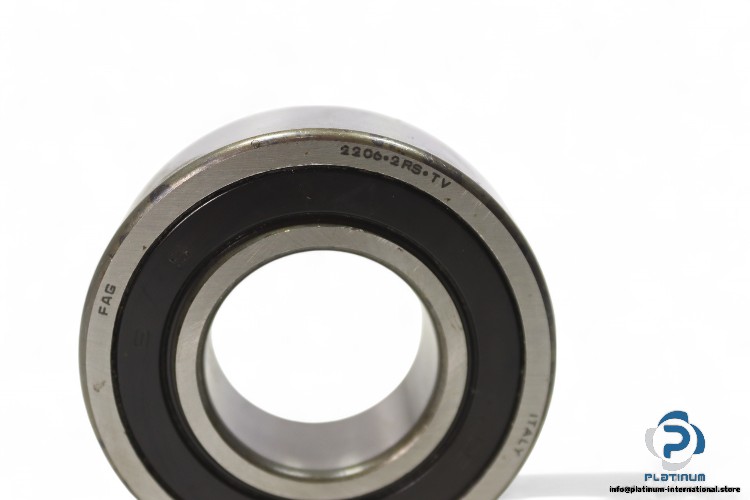

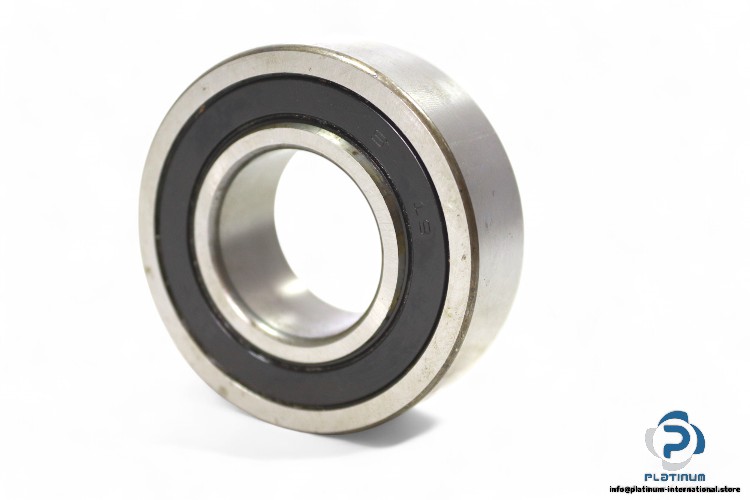

FAG 2206.2RS.TV Self-Aligning Ball Bearing
The FAG 2206.2RS.TV Self-Aligning Ball Bearing is designed to handle misalignment and offer high load capacity, with reliable performance under both radial and axial loads. The contact seals on both sides and solid cage ensure durability and long-lasting operation, making it ideal for industrial machinery.
Manufacturer: FAG
Type: SELF-ALIGNING BALL BEARING
Model: 2206.2RS.TV
Technical Information:
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 62 mm
- Width (B): 20 mm
- Dynamic Load Rating (Cr): 15900 N
- Static Load Rating (C0r): 4650 N
- Fatigue Load Limit: 295 N
- Limiting Speed: 7100 rpm
- Sealing: 2RS, contact seal on both sides
- Cage: TVH, solid cage made of glass-fiber reinforced polyamide PA66
Built to provide exceptional performance and resistance to misalignment, the FAG 2206.2RS.TV bearing is ideal for applications where precision and load handling capacity are required.
