Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

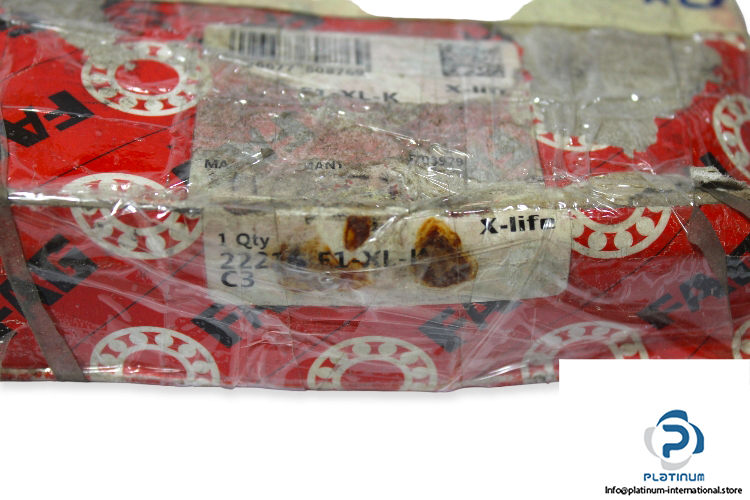

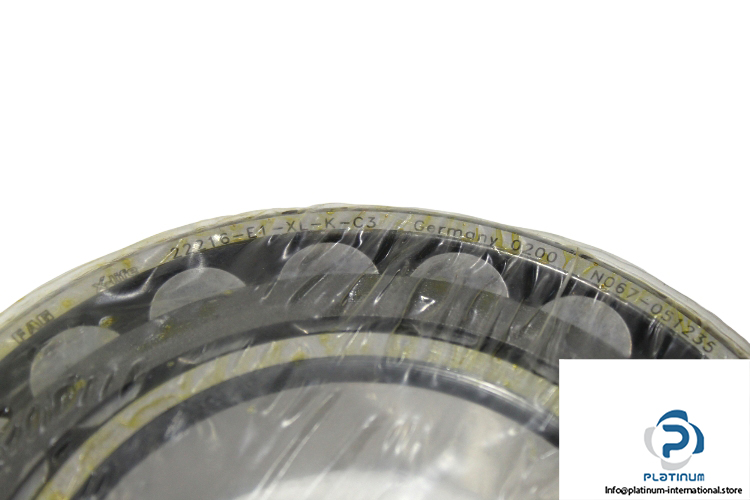

Model: 22216-E1-XL-K-C3

Replaces: 22216E1K.C3, 22216-E1-K-C3

Dimensions:

Bore Diameter d: 80 mm

Outer diameter D: 140 mm

Width: 33 mm

Basic dynamic load rating: 25000 N

Basic static load rating: 270000 N

Fatigue load limit, radial: 34500 N

Limiting speed: 6200 rpm

Reference speed: 3550 rpm

Cage: Sheet metal cage

Radial internal clearance: C3

Bore type: Tapered, taper  1:12

Design: E1, without central rip
