Manufacturer: Schaeffler FAG

Type: Spherical Roller Bearing with tapered bore

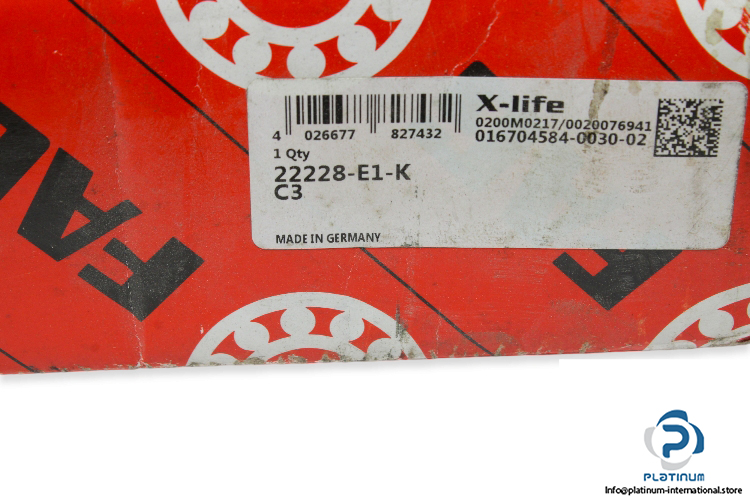

Model: 22228 E1-K-C3

Replaces: 22228-E1-XL-K-C3, 22228E1K.C3

Dimensions:

Bore Diameter d: 140 mm

Outer diameter D: 250 mm

Width: 68 mm

Bore type: Tapered, taper 1:12

Dynamic load rating: 870000 N

Static load rating: 1040000 N

Fatigue load limit: 100000 N

limiting speed: 3150 RPM

Reference speed: 2250 RPM

Radial internal clearance: Group 3 (C3)

Cage material: Sheet metal cage

Operating temperature: -30 … +200 °C
