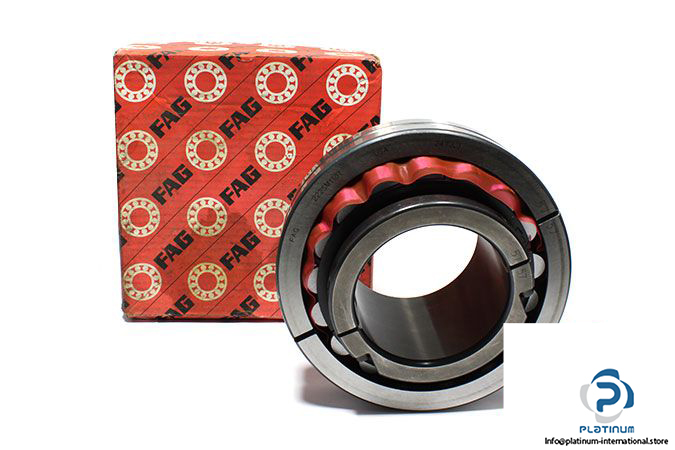

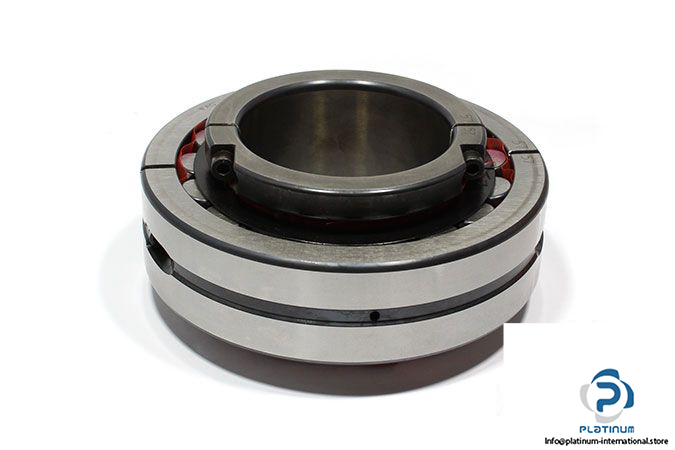

Manufacturer: Schaeffler FAG
Type: Split Spherical Roller Bearings
Model: 222SM110-TVPA

Dimensions:
Bore Diameter d: 110 mm
Outer diameter D: 215 mm
Outer race Width C: 58 mm
Inner race width B: 98 mm
Basic load ratings radial:
Dynamic C_r: 455 kN
Static C_0r: 585 kN
Fatigue load limit: 47 kN
Permissible axial load: 13.8 kN
Suitable FAG plummer block housings: SNV215
Cage material: glass-fiber reinforced polyamid PA66
