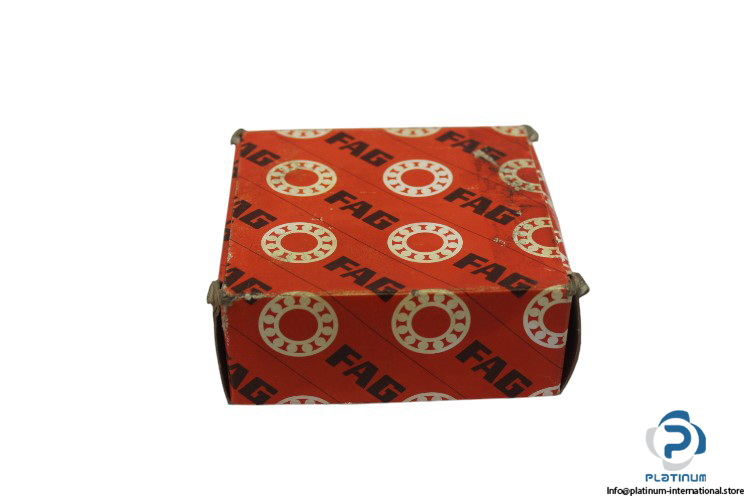

FAG 2308-K-TVH-C3 Self-Aligning Ball Bearing
The FAG 2308-K-TVH-C3 is a high-performance self-aligning ball bearing designed for applications with shaft misalignment and dynamic load demands. Featuring a C3 clearance, a K tapered bore (1:12), and a durable TVH solid cage made of glass-fiber reinforced polyamide PA66, this bearing offers exceptional reliability, smooth operation, and extended service life.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing

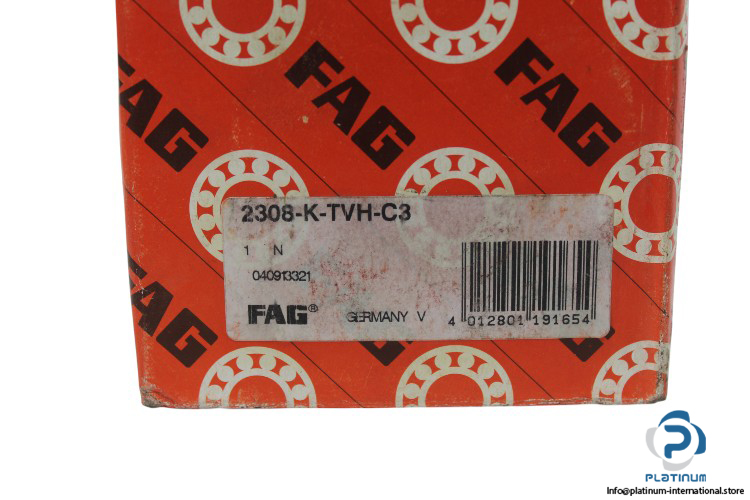

Model: 2308-K-TVH-C3
Technical Information:
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 90 mm
- Width (B): 33 mm
- Dynamic Load Rating (Cr): 46,000 N
- Static Load Rating (C0r): 13,500 N
- Fatigue Load Rating: 860 N
- Limiting Speed: 7,900 1/min
- Reference Speed: 8,700 1/min
- Cage Type: TVH, solid cage made of glass-fiber reinforced polyamide PA66
- Clearance: C3
- Bore Type: K, tapered bore (1:12)
