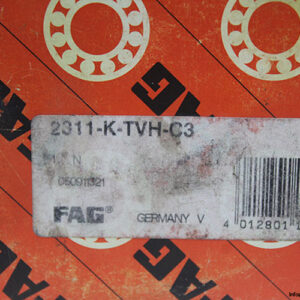

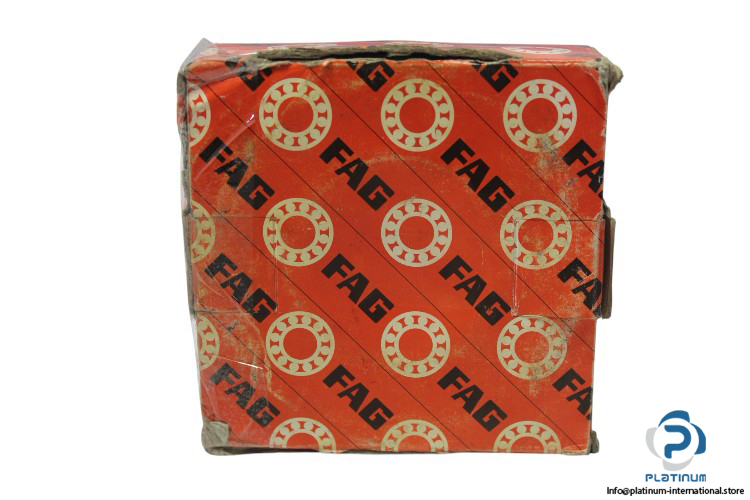

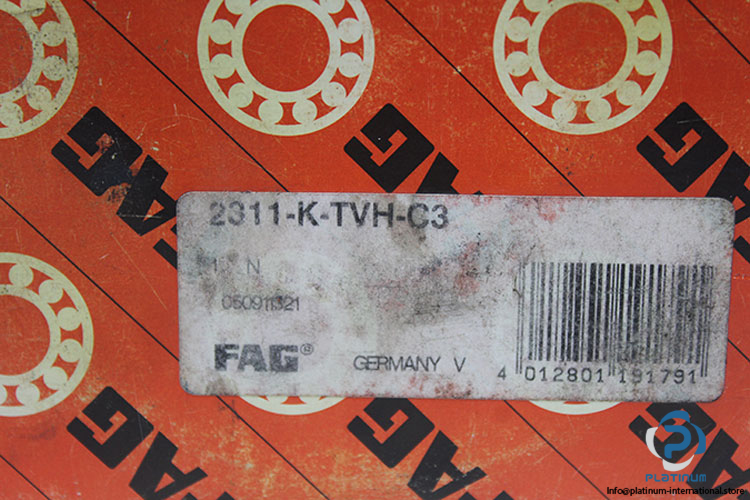

FAG 2311-K-TVH-C3 Self-Aligning Ball Bearing
The FAG 2311-K-TVH-C3 is a high-quality self-aligning ball bearing designed for applications requiring compensation for misalignment and smooth operation under dynamic loads. Its C3 internal clearance, glass-fiber reinforced PA66 cage, and tapered bore (K) ensure performance and durability across demanding industrial environments.
Manufacturer: FAG
Type: Self-Aligning Ball Bearing
Model: 2311-K-TVH-C3
Technical Information:
- Bore Diameter (d): 55 mm
- Outer Diameter (D): 120 mm
- Width (B): 43 mm
- Dynamic Load Rating (Cr): 77,000 N
- Static Load Rating (C0r): 24,000 N
- Fatigue Load Rating: 1,520 N
- Limiting Speed: 5700 rpm
- Reference Speed: 7100 rpm
- Cage: TVH, solid glass-fiber reinforced polyamide PA66
- Clearance: C3
- Bore Type: K (tapered bore, taper 1:12)
