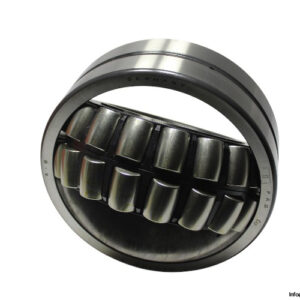

fag-23230-ES.TVPB-spherical-roller-bearing-new-carton-1
fag-23230-ES.TVPB-spherical-roller-bearing-new-carton-2
bearings-image-01
fag-23230-ES.TVPB-spherical-roller-bearing-new-carton-1
fag-23230-ES.TVPB-spherical-roller-bearing-new-carton-2

FAG 23230 -ES.TVPB SPHERICAL ROLLER BEARING

SPHERICAL ROLLER BEARING

FAG 23230ES.TVPB Spherical Roller Bearing with 150 mm bore, 270 mm outer diameter, and 96 mm width. Features a plastic cage, high load ratings, and cylindrical bore for reliable heavy-duty applications.

SKU: 1007008 Category: Tags: , , , , , , , , , , , , , , , , , , ,
In stock: 2 pcs
Very low
Hurry! Only 2 left in stock.
Add to quote

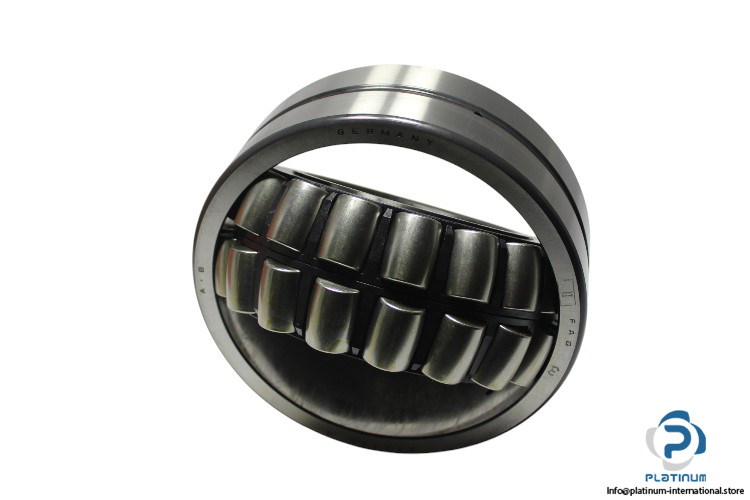

FAG 23230ES.TVPB SPHERICAL ROLLER BEARING

The FAG 23230ES.TVPB is a high-capacity spherical roller bearing designed for heavy-duty industrial applications. With its cylindrical bore and reinforced plastic cage (TVPB), it offers durability, high load resistance, and consistent performance even under challenging operating conditions.

Manufacturer: FAG
Type: Spherical Roller Bearing
Model: 23230ES.TVPB

Technical Information

  • Bore Diameter (d): 150 mm
  • Outer Diameter (D): 270 mm
  • Width (B): 96 mm
  • Dynamic Load Rating: 1,280,000 N
  • Static Load Rating: 1,660,000 N
  • Fatigue Load Limit: 133,000 N
  • Limiting Speed: 2400 1/min
  • Reference Speed: 1400 1/min
  • Cage Type: TVPB (Plastic Cage)
  • Temperature Range: -30 °C to 120 °C
  • Bore Type: Cylindrical
Weight22,53 kg
