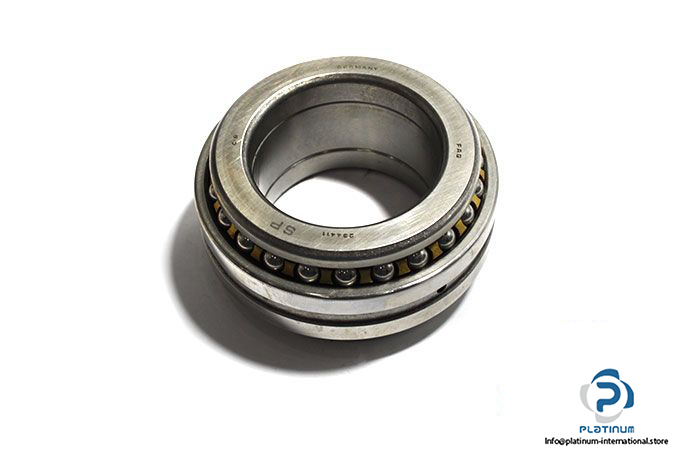

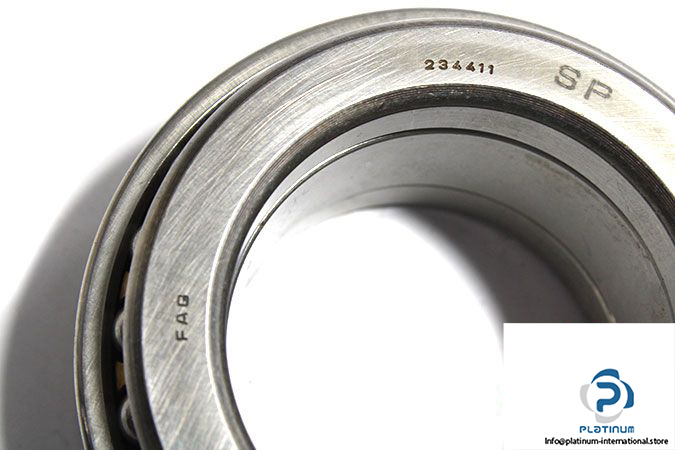

Manufacturer: Schaeffler FAG
Type: Axial Angular Contact Ball Bearing Double Direction
Model: 234411-M-SP

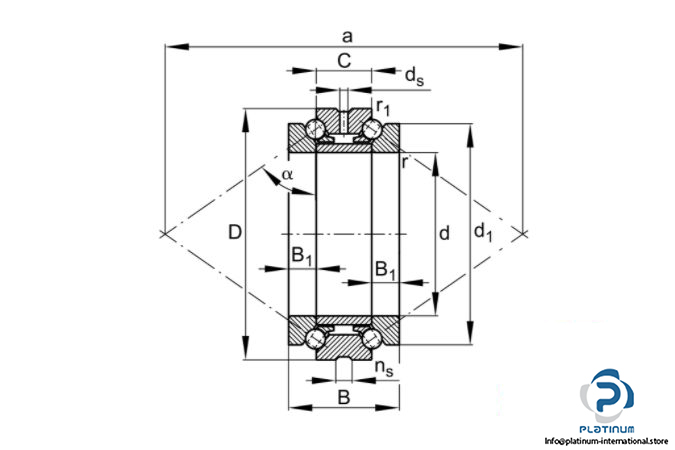

Dimensions:
Bore diameter d: 55 mm
Outer diameter D: 90 mm
Width B: 44 mm
Width, outer ring C: 22mm
Basic load ratings, axial:
Dynamic Ca: 37,500 N
Static Coa: 102,000 N
Fatigue load limit, axial Cua: 9,500 N
Limiting speed for grease lubrication: 6,300 rpm
Limiting speed for oil lubrication: 8,500 rpm
Tolerance class: SP
Cage: Brass Cage
Operating temperature: -30 … +150 °C
Weight: 0.95 kg
