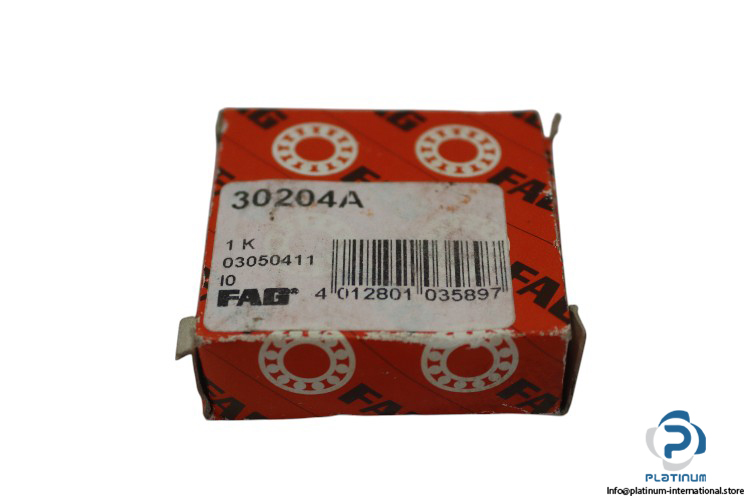

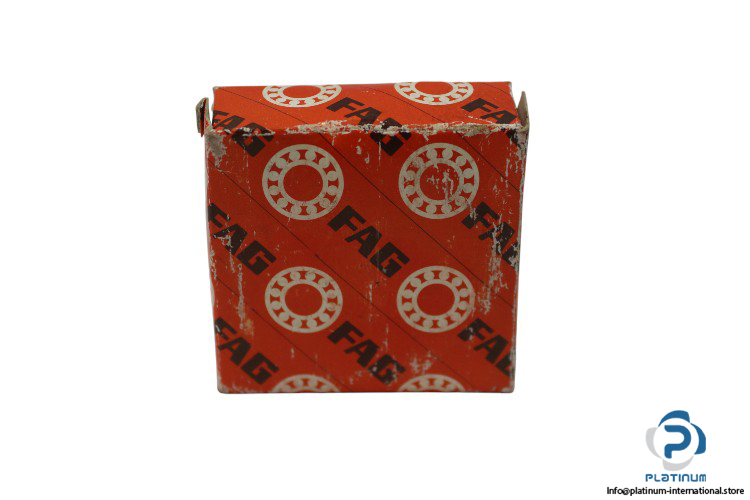

FAG 30204A Tapered Roller Bearing

The FAG 30204A Tapered Roller Bearing is designed to handle both radial and axial loads in applications requiring high precision and efficiency. It offers excellent durability with robust load capacities and a high limiting speed, making it ideal for heavy-duty operations.

Manufacturer: FAG

Model: 30204A

Type: Tapered Roller Bearing

Technical Information:

• Bore Diameter (D): 20 mm
• Outer Diameter (D): 47 mm
• Total Width (T): 15.25 mm
• Dynamic Load Rating: 27,000 N
• Static Load Rating: 27,000 N
• Fatigue Load Limit: 2,950 N
• Limiting Speed: 16,800 1/min
• Thermal Speed Rating: 10,200 1/min
• Cage: Sheet steel cage, window cage, roller-guided
