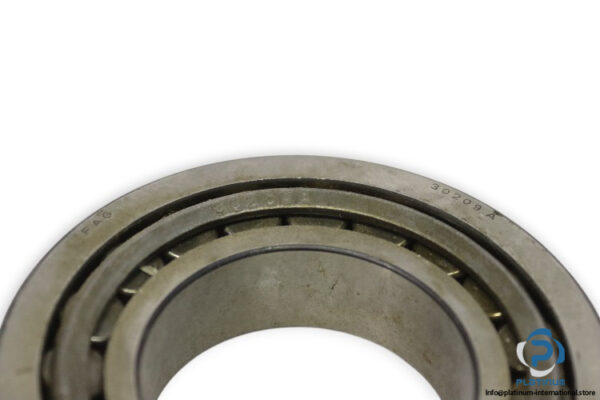

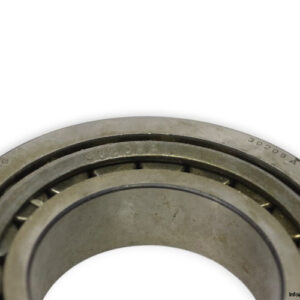

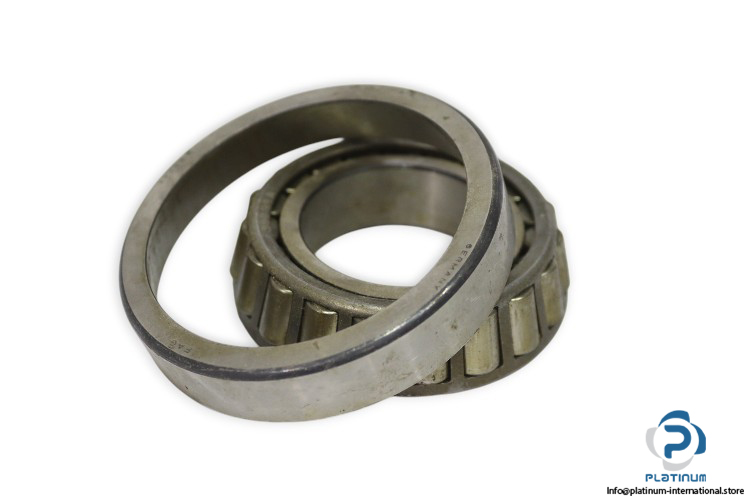

FAG 30209 A Tapered Roller Bearing

The FAG / Schaeffler 30209 A is a high-quality tapered roller bearing designed for radial and axial loads in both directions. Engineered for precision and durability, this bearing provides excellent performance in demanding industrial and mechanical applications. Its robust construction with a steel cage and optimized geometry ensures long service life and smooth operation under high loads and speeds.

• Manufacturer: FAG / Schaeffler
• Type: Tapered Roller Bearing
• Model: 30209 A

Technical Information

• Bore Diameter (d): 45 mm
• Outer Diameter (D): 85 mm
• Total Width (T): 20.75 mm
• Dynamic Load Rating: 70,000 N
• Static Load Rating: 82,000 N
• Fatigue Load Limit: 9,800 N
• Limiting Speed: 8,800 rpm
• Thermal Speed Rating: 5,400 rpm
• Cage: Sheet steel cage, window cage, roller-guided
• Operating Temperature: -30°C to 120°C
