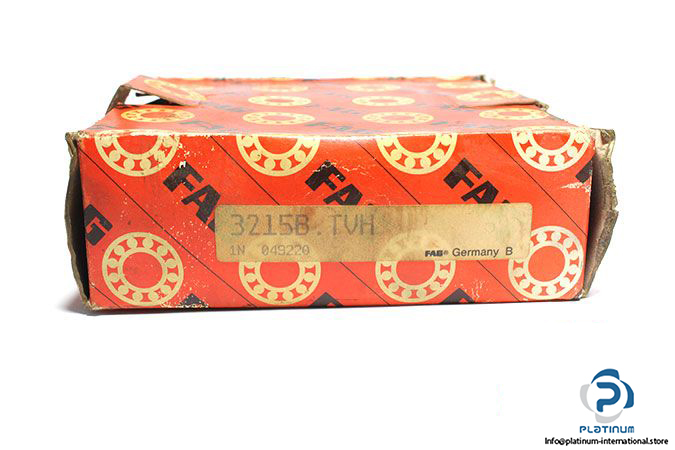

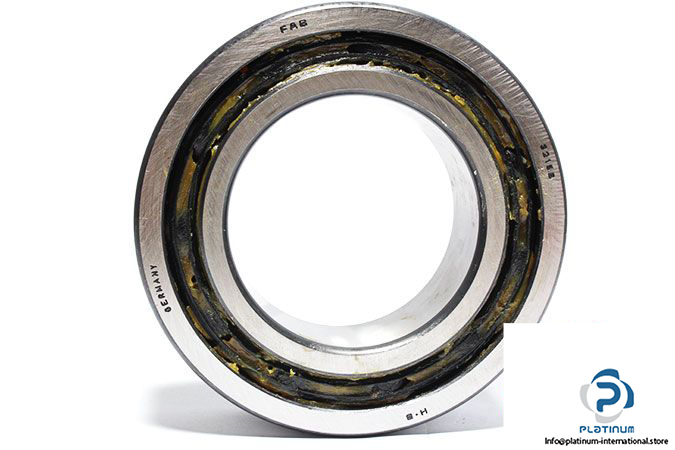

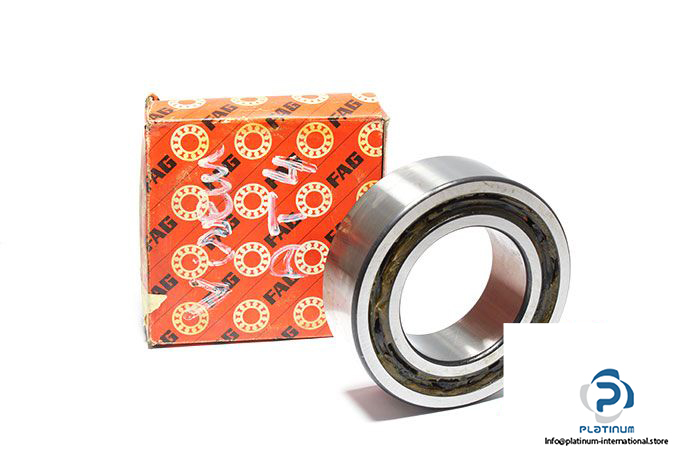

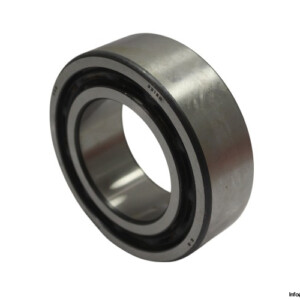

FAG 3215B.TVH Double Row Angular Contact Ball Bearing

The FAG 3215B.TVH Double Row Angular Contact Ball Bearing is designed for applications that require high precision and load carrying capacity. With a 25° contact angle and durable glass-fiber reinforced polyamide cage, it ensures reliable performance in high-speed applications.

Manufacturer: FAG

Type: Double Row Angular Contact Ball Bearing

Model: 3215B.TVH

Technical Information:

• Bore Diameter (d): 75 mm
• Outer Diameter (D): 130 mm
• Width (B): 41.3 mm
• Contact Angle: 25°
• Dynamic Load Rating (Cr): 88 kN
• Static Load Rating (C0r): 85 kN
• Fatigue Limit Load (Cur): 4,350 N
• Limiting Speed: 3,900 1/min
• Reference Speed: 5,300 1/min
• Cage Design: TVH, Solid cage made of glass-fiber reinforced polyamide PA66
