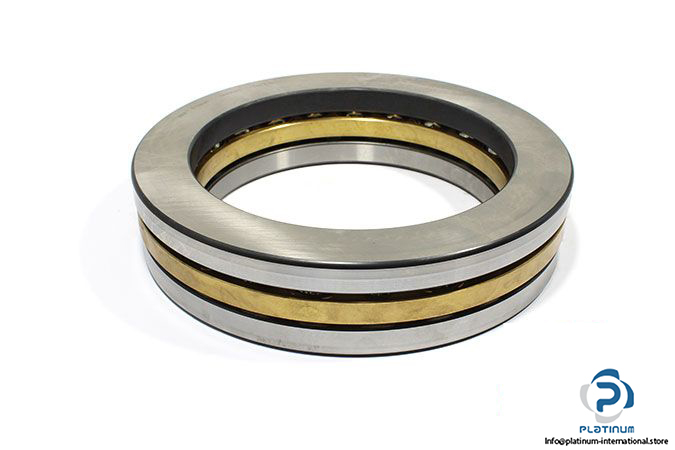

Manufacturer: Schaeffler FAG

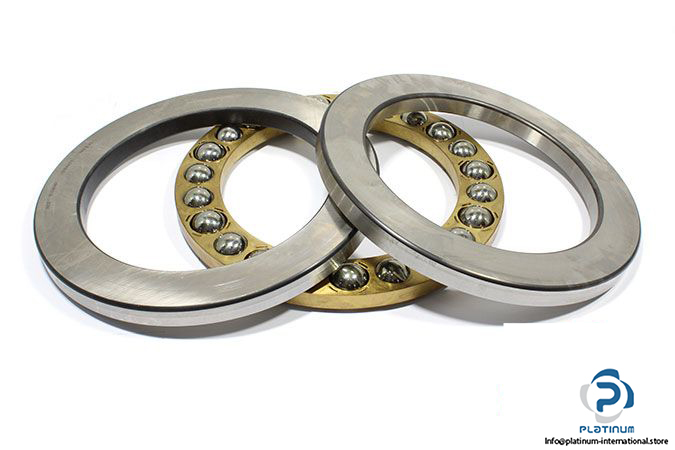

Type: Axial Deep Groove Ball Bearing single direction

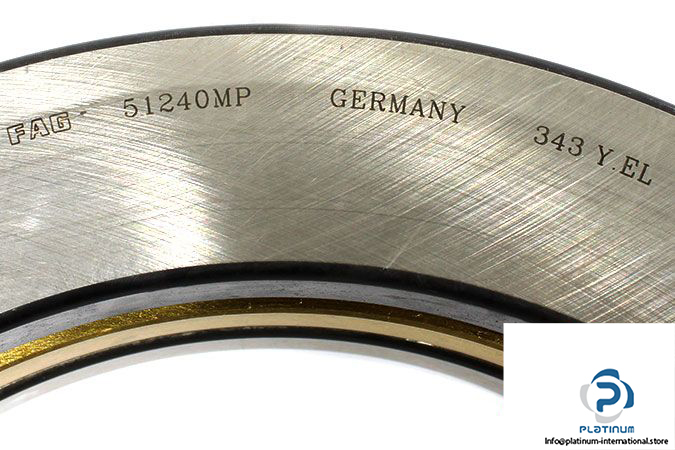

Model: 51240-MP

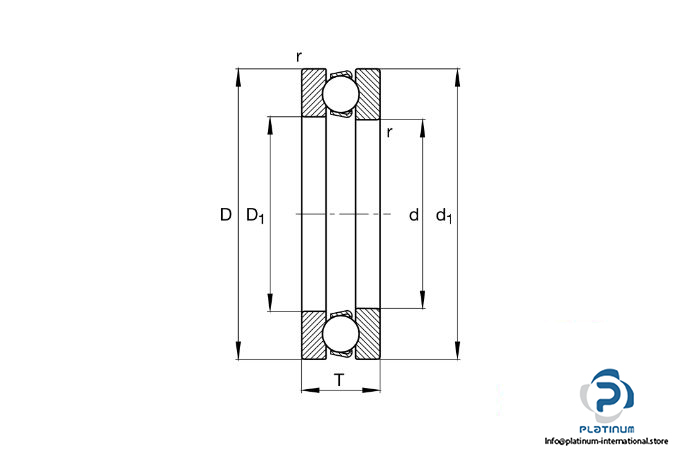

Dimensions

Inner diameter shaft washer d: 200 mm

Outer diameter housing washer D: 280 mm

Height T: 62 mm

Outer diameter shaft washer d₁: 275 mm

Minimum chamfer dimension r_min: 2 mm

Basic load ratings, axial:

Dynamic C_a: 340000 N

Static C_0a: 1220000 N

Fatigue load rating C_ua: 36000 N

Limiting speed: 1510 rpm

Reference speed: 1890 rpm

Cage: MP, Solid Brass Cage

Operating temperature: -30 … +200 °C

Weight: 11.95 kg
