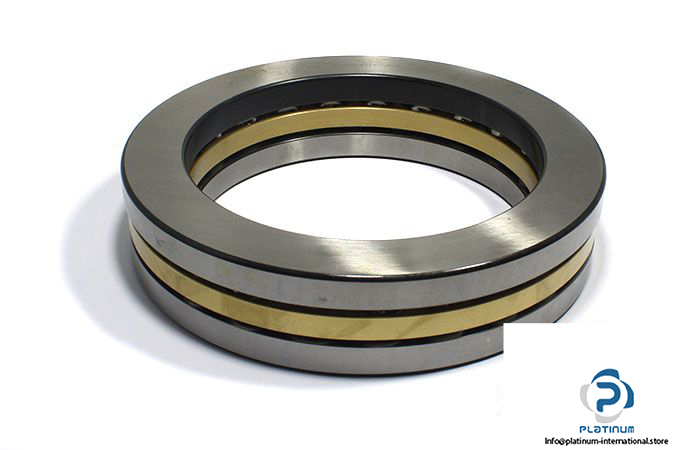

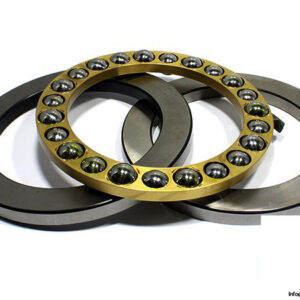

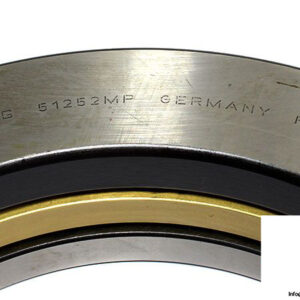

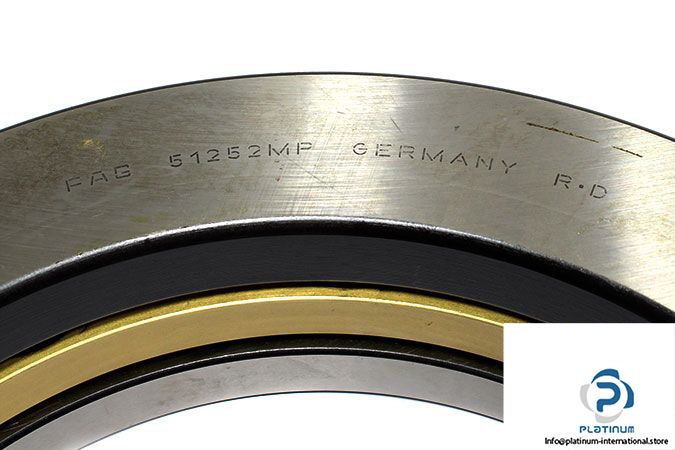

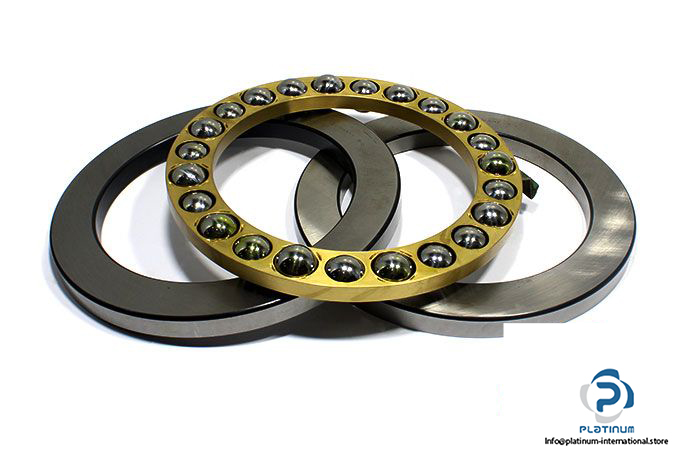

Schaeffler FAG 51252-MP Axial Deep Groove Ball Bearing

A high-capacity axial deep groove ball bearing engineered for exceptional load performance and long service life. Designed by Schaeffler FAG for heavy-duty applications requiring precise axial guidance, excellent thermal stability, and maximum reliability under continuous operation. Manufacturer: Schaeffler FAG
Type: Axial Deep Groove Ball Bearing Single Direction
Model: 51252-MP

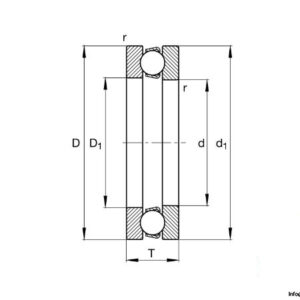

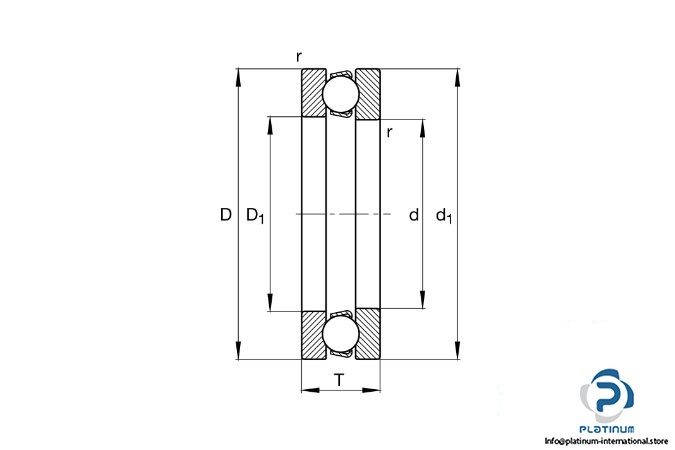

Dimensions
Inner diameter shaft washer (d): 260 mm
Outer diameter housing washer (D): 360 mm
Height (T): 79 mm
Outer diameter shaft washer (d1): 355 mm
Minimum chamfer dimension (r min): 2.1 mm
Basic load ratings, axial:
Dynamic (Ca): 490000 N
Static (C0a): 2060000 N
Fatigue load rating (Cua): 54000 N
Limiting speed: 1140 rpm
Reference speed: 1350 rpm
Cage: MP, solid brass cage
Operating temperature: -30 / +200 °C

Recommended For:
A premium bearing solution ideal for heavy-duty axial load applications where maximum reliability and stability are essential. The FAG 51252-MP is engineered for extremely high load capacity, long service life, and outstanding thermal resilience”making it perfect for industrial gearboxes, heavy machinery, steel and rolling mills, power transmission systems, high-capacity pumps, and demanding mechanical assemblies. Choosing this model ensures superior performance, reduced downtime, and dependable operation in the toughest environments.
