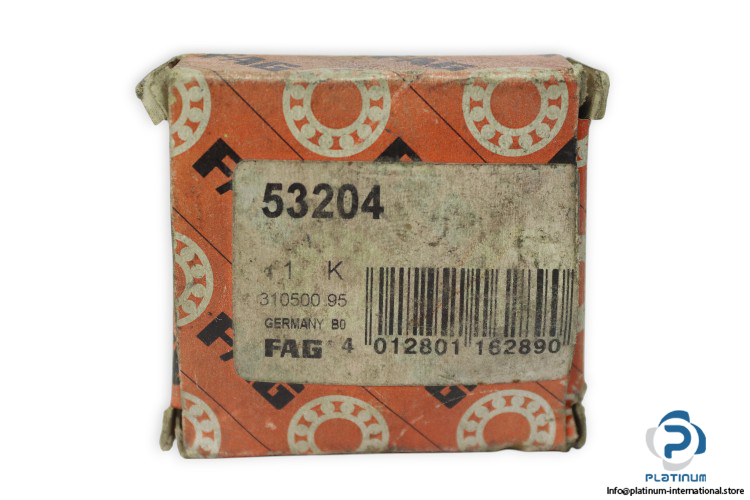

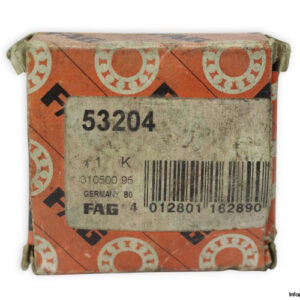

FAG 53204 THRUST BALL BEARING
The FAG 53204 Thrust Ball Bearing is designed to support axial loads with precision and durability. Engineered for high performance, it offers excellent load ratings and high-speed capability, making it suitable for demanding industrial applications.
Manufacturer: FAG
Type: Thrust Ball Bearing
Model: 53204
Technical Information
- Bore Diameter d: 20 mm
- Outer Diameter D: 40 mm
- Height: 14.7 mm
- Basic Load Ratings:
- Dynamic Cr: 21,100 N
- Static C0r: 37,500 N
- Fatigue Load Rating: 1,700 N
- Limiting Speed: 8,500 1/min
- Reference Speed: 11,600 1/min
