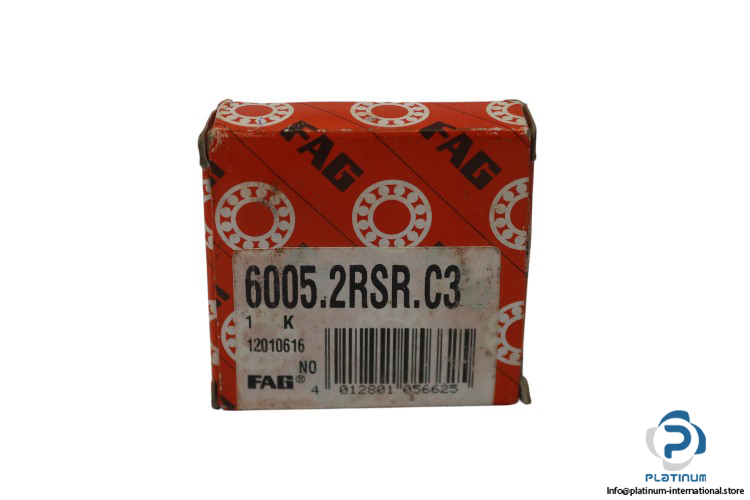

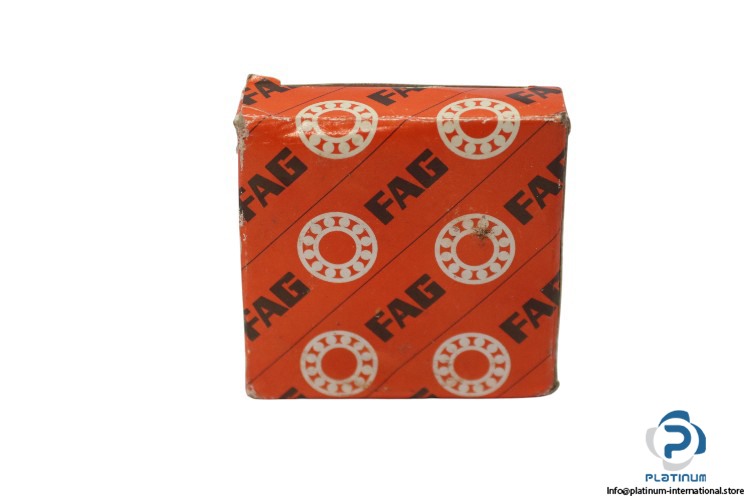

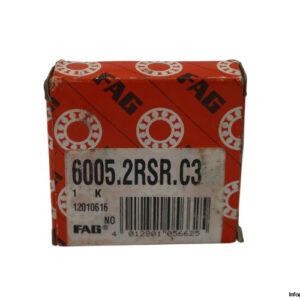

FAG 6005-2RSR-C3 “ Deep Groove Ball Bearing
The FAG 6005-2RSR-C3 deep groove ball bearing offers excellent load handling and smooth operation in a variety of industrial and mechanical applications. With a contact seal on both sides and C3 clearance, it is designed to perform reliably in high-speed and high-load environments.
- Manufacturer: FAG
- Type: Deep Groove Ball Bearing
- Model: 6005-2RSR-C3
Technical Information:
- Bore Diameter (d): 25 mm
- Outer Diameter (D): 47 mm
- Width (B): 12 mm
- Dynamic Load Rating (Cr): 10,700 N
- Static Load Rating (C0r): 5,900 N
- Fatigue Load Limit: 315 N
- Limiting Speed: 8,400 1/min
- Cage: Steel sheet metal
- Sealing: 2RSR, Contact seal on both sides
- Clearance: C3
- Operating Temperature: -20 to 100°C
