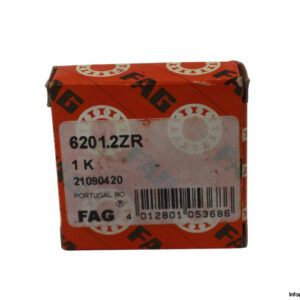

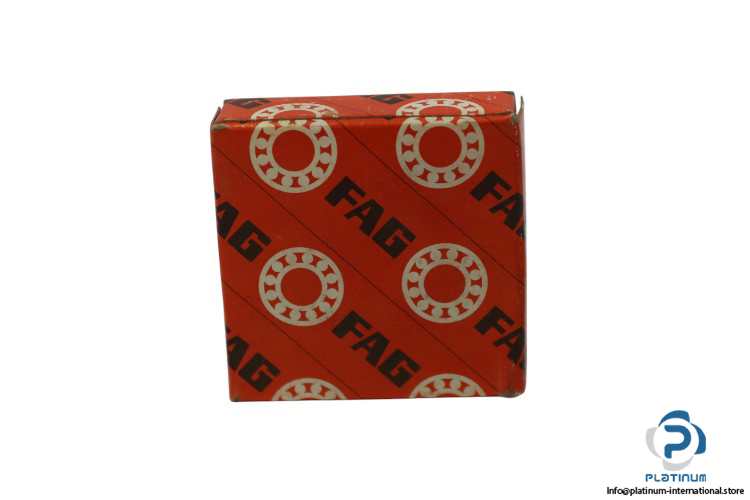

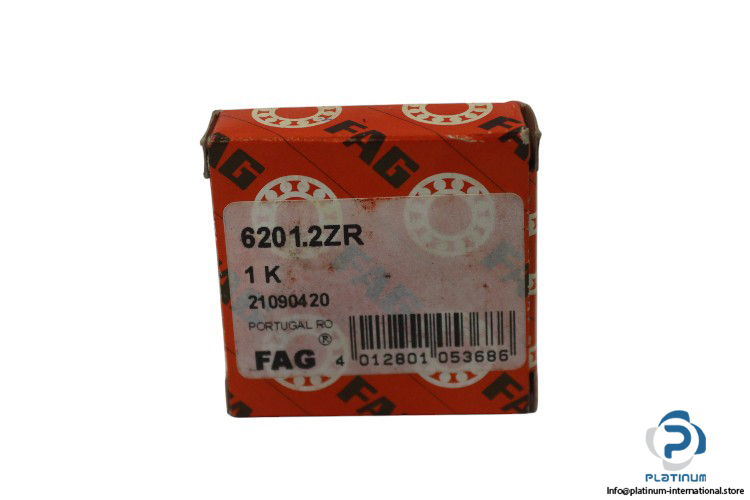

FAG 6201 2ZR “ Deep Groove Ball Bearing
The FAG 6201 2ZR deep groove ball bearing is designed for versatile and reliable performance in various industrial applications. With its non-contact shields and steel sheet metal cage, this bearing provides high durability and efficient operation even under varying temperature conditions.
- Manufacturer: FAG
- Type: Deep Groove Ball Bearing
- Model: 6201 2ZR
Technical Information:
- Bore Diameter (d): 12 mm
- Outer Diameter (D): 32 mm
- Width (B): 10 mm
- Dynamic Load Rating (Cr): 7,300 N
- Static Load Rating (C0r): 3,100 N
- Fatigue Load Limit: 203 N
- Limiting Speed: 28,500 1/min
- Reference Speed: 22,200 1/min
- Cage: Steel sheet metal
- Sealing: 2ZR, non-contact shield on both sides
- Operating Temperature: -20 to 120 °C
