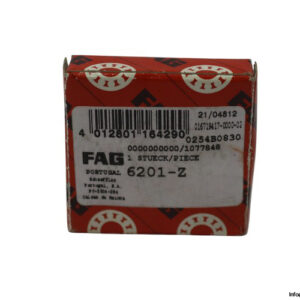

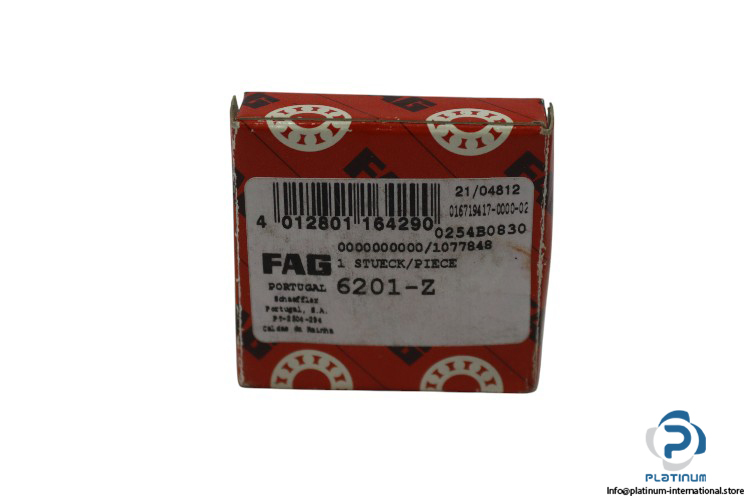

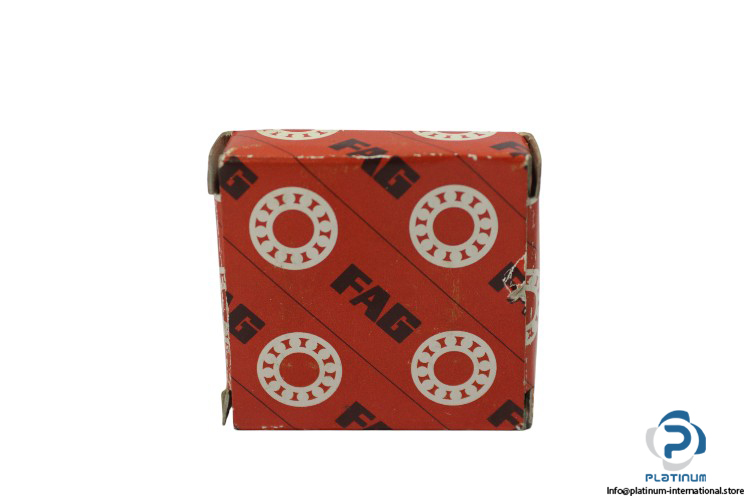

FAG 6201 Z “ Deep Groove Ball Bearing
The FAG 6201 Z deep groove ball bearing is designed for high-speed performance with robust load-bearing capacity. Ideal for applications requiring low friction and compact dimensions, it features a non-contact shield on one side to protect against dirt and debris.
- Manufacturer: FAG
- Type: Deep Groove Ball Bearing
- Model: 6201 Z
Technical Information:
- Bore Diameter (d): 12 mm
- Outer Diameter (D): 32 mm
- Width (B): 10 mm
- Dynamic Load Rating (Cr): 8,000 N
- Static Load Rating (C0r): 3,100 N
- Fatigue Load Limit: 213 N
- Limiting Speed: 37,000 1/min
- Reference Speed: 24,600 1/min
- Cage: Steel sheet metal
- Sealing: Z, Non-contact shield on one side
- Operating Temperature: -30 to 120 degrees Celsius
