Manufacturer: Schaeffler FAG

Type: Deep Groove Ball Bearing

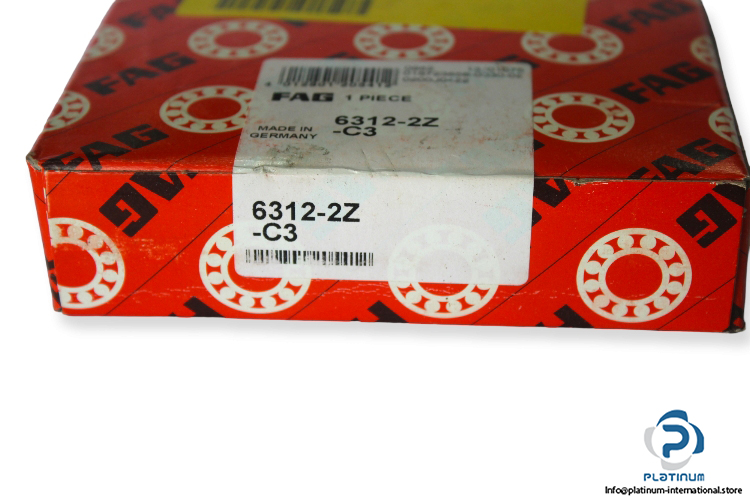

Model: 6312-2ZC3

Replaces: 6312.2ZR.C3

Dimensions

Bore Diameter d: 60 mm

Outer diameter D: 130 mm

Width B: 31 mm

Dynamic C_r: 89000 N

Static C_0r: 52000 N

Fatigue load limit: 3600 N

Limiting speed: 6700 rpm

Reference speed: 6700 rpm

Seal: 2Z, Non-contact Shield on both sides

Cage: steel sheet metal

Radial internal clearance: C3, Group 3
