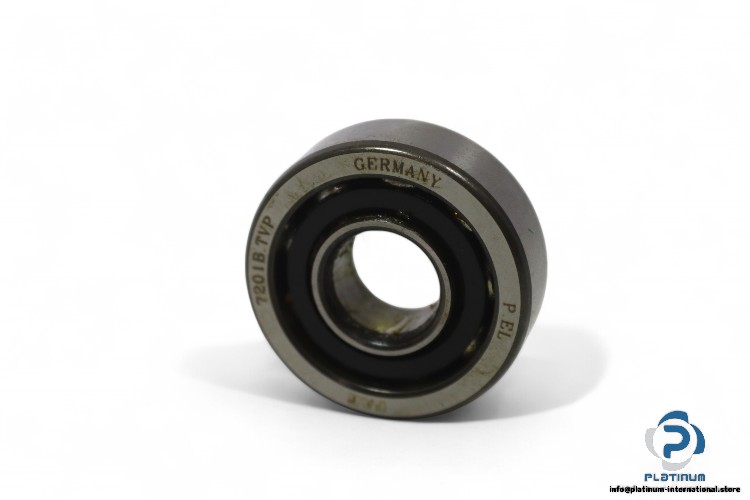

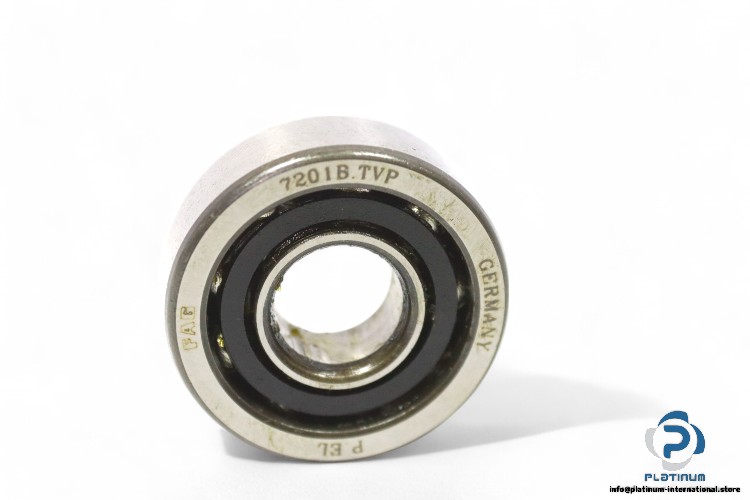

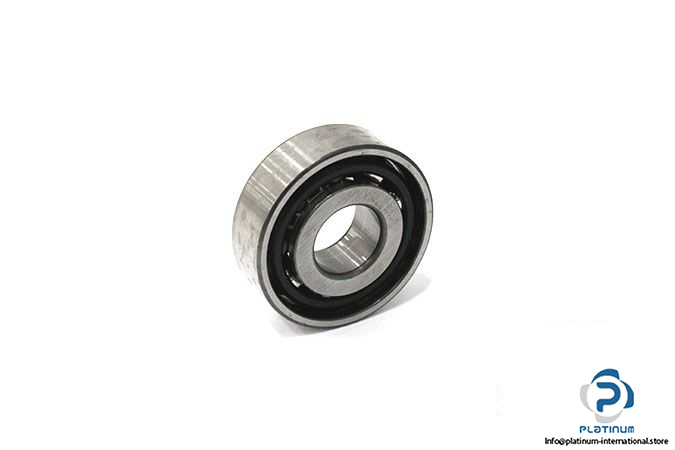

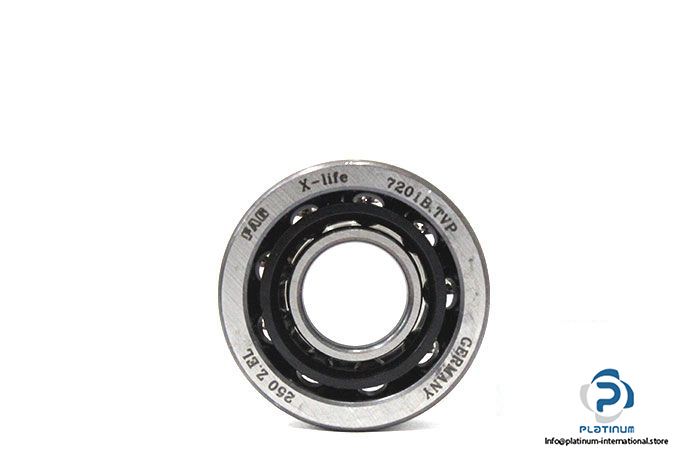

FAG 7201B.TVP Angular Contact Ball Bearing
The FAG 7201B.TVP Angular Contact Ball Bearing is engineered for high-speed and high-load applications, offering a 40° contact angle for enhanced axial and radial load capacity. Designed with a TVP solid cage made of glass-fiber reinforced polyamide PA66, this bearing ensures durability and efficiency in demanding industrial environments.
- Manufacturer: FAG
- Type: Angular Contact Ball Bearing
- Model: 7201B.TVP
Technical Information
- Bore Diameter: 12 mm
- Outer Diameter: 32 mm
- Width: 10 mm
- Contact Angle: 40°
- Basic Load Ratings:
- Dynamic (Cr): 7.9 kN
- Static (C0r): 3.55 kN
- Fatigue Load Rating: 248 N
- Limiting Speed: 33,000 rpm
- Reference Speed: 21,100 1/min
- Cage: TVP, solid cage made of glass-fiber reinforced polyamide PA66
