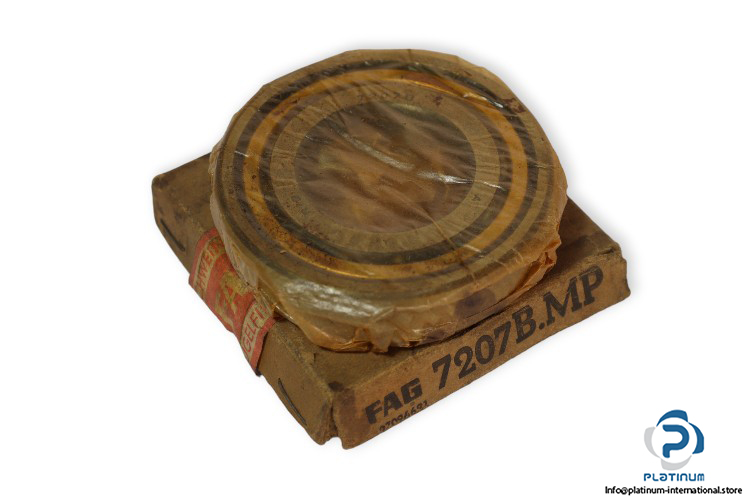

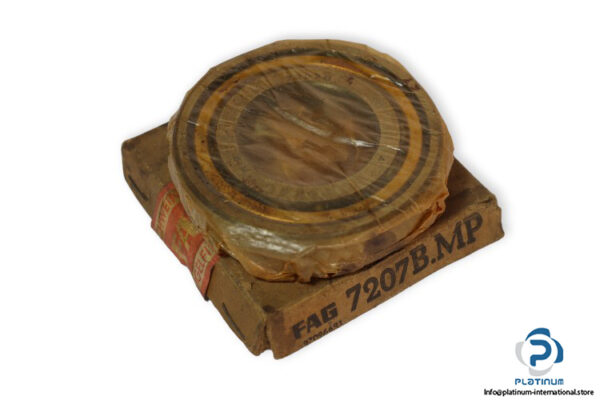

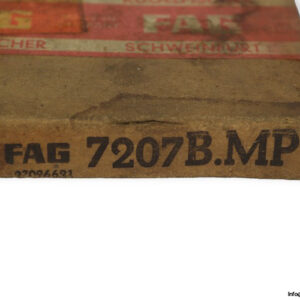

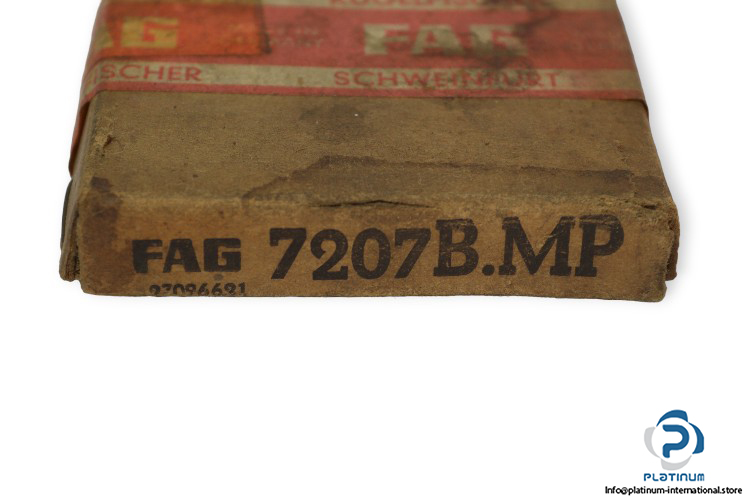

FAG 7207 B ANGULAR CONTACT BALL BEARING

The FAG 7207 B Angular Contact Ball Bearing is designed for high precision and load-carrying capacity in demanding industrial applications. With a 40° contact angle, brass cage, and robust performance under high speeds, this bearing ensures reliable operation and long service life.

Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7207 B

Technical Information

• Bore Diameter (d): 35 mm
• Outer Diameter (D): 72 mm
• Width (B): 17 mm
• Chamfer (rmin): 1.1 mm
• Dynamic Load Rating (Cr): 30000 N
• Static Load Rating (C0r): 19000 N
• Fatigue Load Limit (Cur): 1320 N
• Contact Angle: 40°
• Limiting Speed: 17400 rpm
• Reference Speed: 9600 rpm
• Cage: Brass
