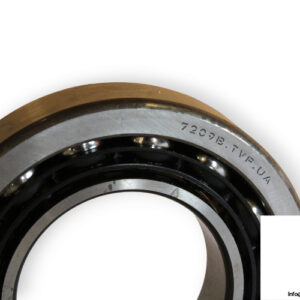

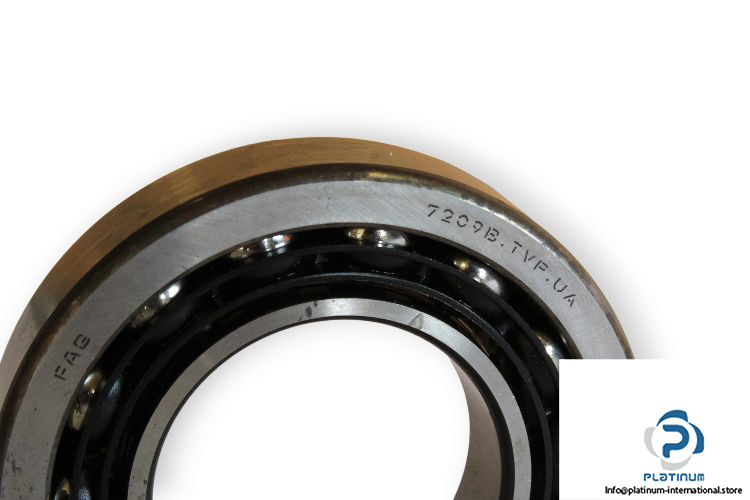

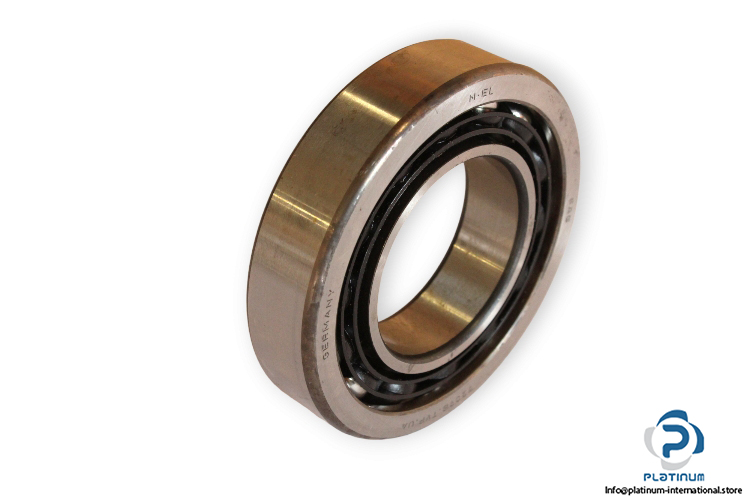

Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7209 B.TVP.UA
Replaces: 7209-B-XL-TVP-UA, 7209-B-TVP-UA
Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 85 mm
Width B: 19 mm
Basic load ratings:
Dynamic Cr: 40000 N
Static C0r: 27000 N
Fatigue load limit Cur: 1870 N
Contact Angle: 40°
Limiting speed: 11000 rpm
Reference speed: 8000 rpm
Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance
Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66
Tolerance class: P6, Class6 (P6), better than PN
