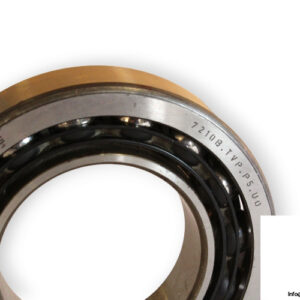

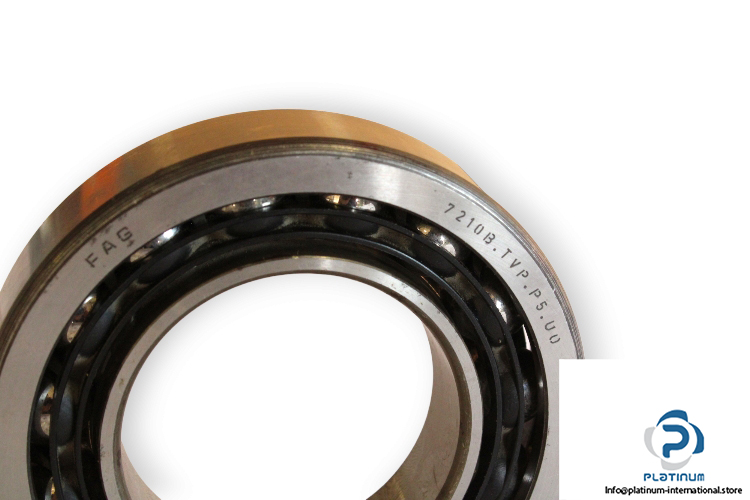

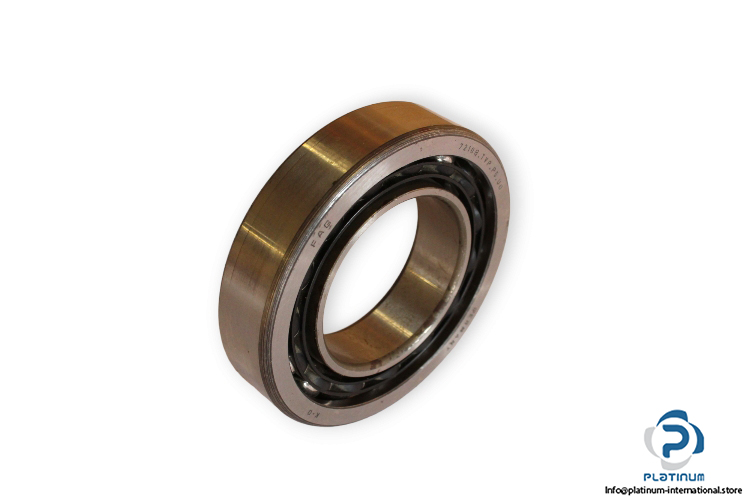

Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7210 B.TVP.P5.UO
Replaces: 7210-B-XL-TVP-P5-UO, 7210-B-TVP-P5-UO
Dimensions
Bore Diameter d: 50 mm
Outer diameter D: 90 mm
Width B: 20 mm
Contact angle α: 40 °
Basic load ratings:
Dynamic Cr: 41500 N
Static C0r: 28500 N
Fatigue load limit Cur: 1970 N
Limiting speed: 10300 rpm
Reference speed: 7600 rpm
Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66
Tolerance class: P5, Class5 (P5), better than P6
Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement
