Manufacturer: Schaeffler FAG

Type: Angular Contact Ball Bearing

Model: 7310 B JP UO

Replaces: 7310-B-XL-JP

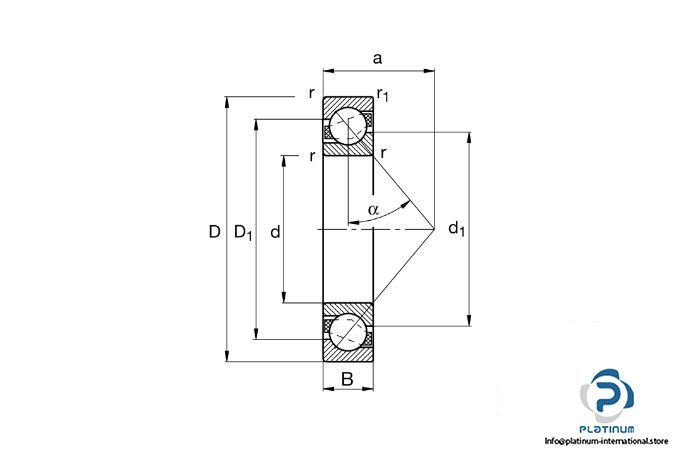

Dimensions

Bore Diameter d: 50 mm

Outer diameter D: 110 mm

Width B: 27 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 80000 N

Static C_0r: 50000 N

Fatigue load limit C_ur: 3500 N

Limiting speed: 8400 rpm

Reference speed: 6100 rpm

Cage: Steel Sheet Metal

Operating Temperature: -30 … +150 °C

Weight: 1.07 kg
