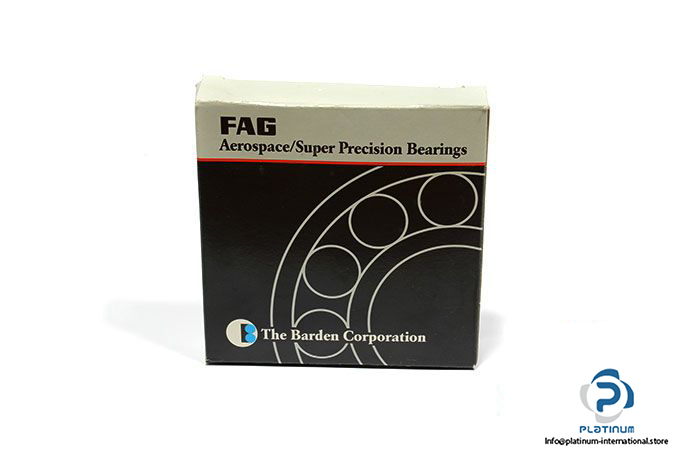

Manufacturer: Schaeffler FAG
Type: Angular contact ball bearing (Spindle Bearing)

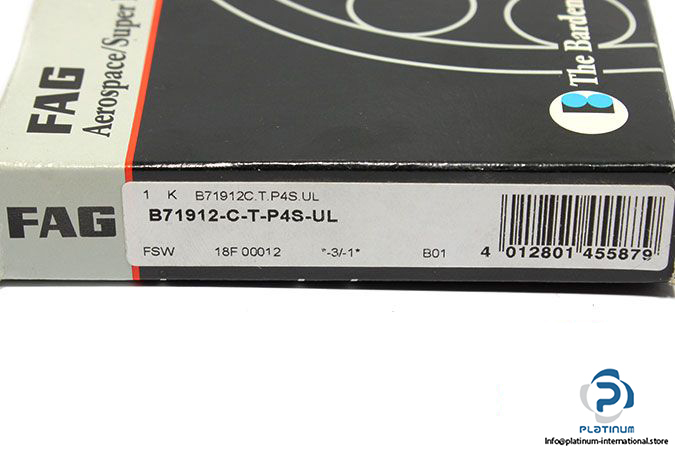

Model: B71912-C-T-P4S-UL
Replaces: B71912C.T.P4S.UL, B71912C.TPA.P4.UL
Dimensions:
Bore Diameter d: 60 mm
Outer diameter D: 85 mm
Width: 13 mm
Contact angle: 15 °
Dynamic load rating: 24700 N
Static load rating: 16000 N
Fatigue load limit: 1690 N
Limiting speed for grease lubrication: 16000 RPM
Limiting speed for oil lubrication: 24000 RPM
Tolerance class: P4S
Cage material: Laminated fabric cage
