Manufacturer: Schaeffler FAG
Type: Angular contact ball bearing (Spindle Bearing)
Model: B71913 C.T.P4S.UL
Replaces: B71913-C-T-P4S-UL, B71913C.TPA.P4.UL
Dimensions:
Bore Diameter d: 65 mm
Outer diameter D: 90 mm
Width: 13 mm
Contact angle: 15 °
Dynamic load rating: 25000 N
Static load rating: 16900 N
Fatigue load limit: 1790 N
Limiting speed for grease lubrication: 15000 RPM
Limiting speed for oil lubrication: 22000 RPM
Tolerance class: P4S
Cage material: Laminated fabric cage
New
Angular Contact

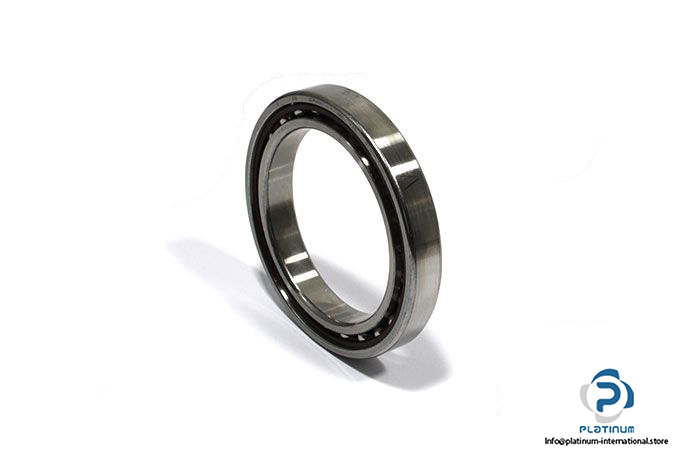

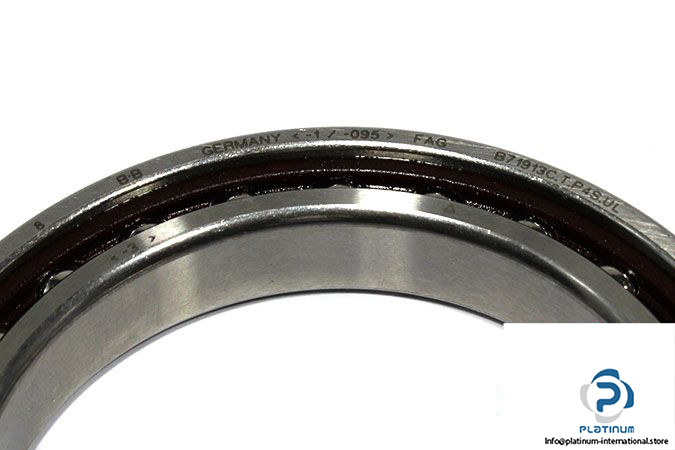

FAG B71913C.T.P4S.UL ANGULAR CONTACT BALL BEARING
In stock: 9 pcs
Low stock
Only 9 items remaining.
| Weight | 0,2 kg |
|---|---|
