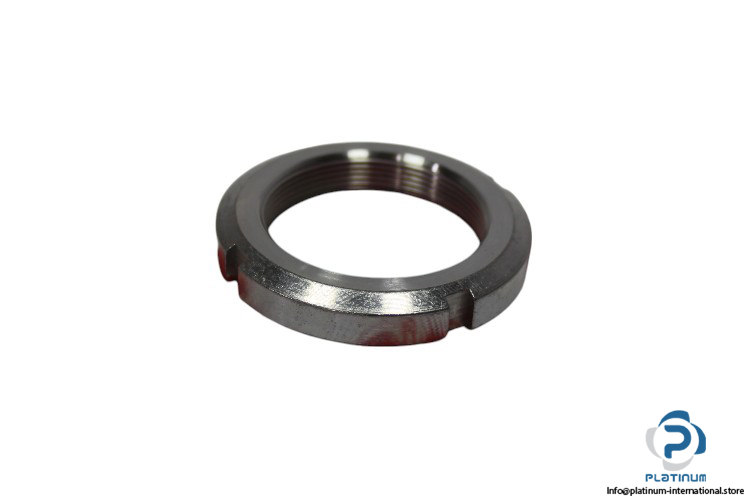

FAG KM10 Locknut

The FAG KM10 Locknut is a high-precision mechanical component designed to secure bearings and other machine elements onto a shaft. Featuring an M50x1.5 thread and compatible MB10 fuse, this locknut ensures axial positioning and resistance to vibration in demanding applications.

Manufacturer: FAG

Type: Locknut

Model: KM10

Technical Information:

• Thread (d): M50x1.5
• Outer Side Diameter: 70 mm
• Width: 11 mm
• Chamfer Diameter: 61 mm
• Width Retaining Slot: 6 mm
• Groove Base Distance: 65 mm
• Axial Load Capacity, Static: 93,000 N
• Fuse: MB10
• Chamfer Angle: 30°
