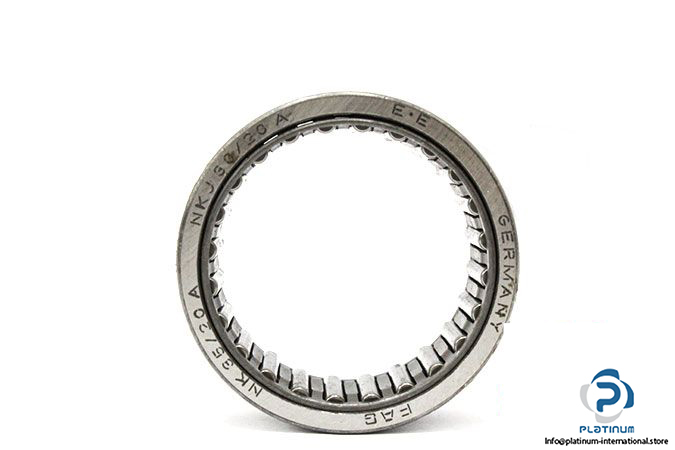

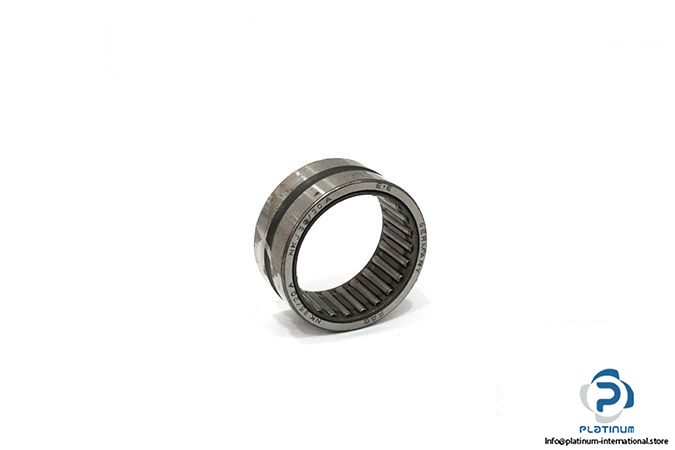

Schaeffler FAG NKJ 30/20 A Needle Roller Bearing Without Inner Ring
The Schaeffler FAG NKJ 30/20 A Needle Roller Bearing is designed for high load capacity and efficient performance in compact applications. Engineered without an inner ring, it offers a space-saving solution with excellent radial load resistance and high-speed capabilities.
- Manufacturer: Schaeffler FAG
- Type: Needle Roller Bearing Without Inner Ring
- Model: NKJ 30/20 A
- Model (Without Inner Ring): NK 35/20 A
Technical Information
- Under Roller Diameter (FW): 35 mm
- Outer Diameter (D): 45 mm
- Width (B): 20 mm
- Basic Load Ratings, Radial:
- Dynamic (Cr): 24.3 kN
- Static (C0r): 41.5 kN
- Limiting Speed (nG): 12,000 rpm
