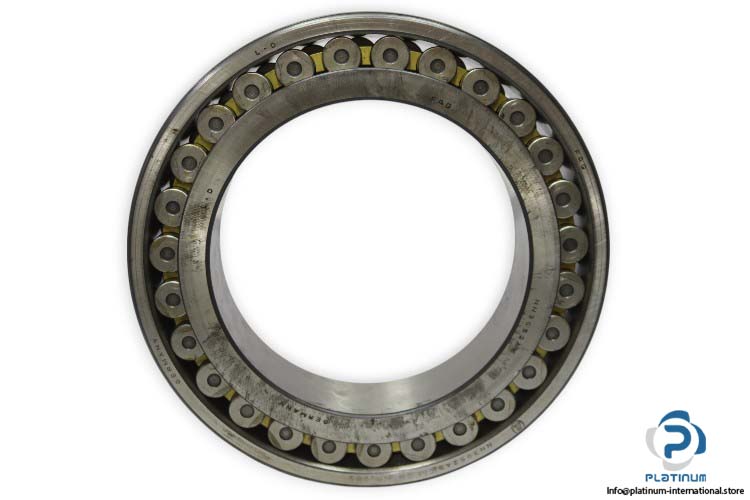

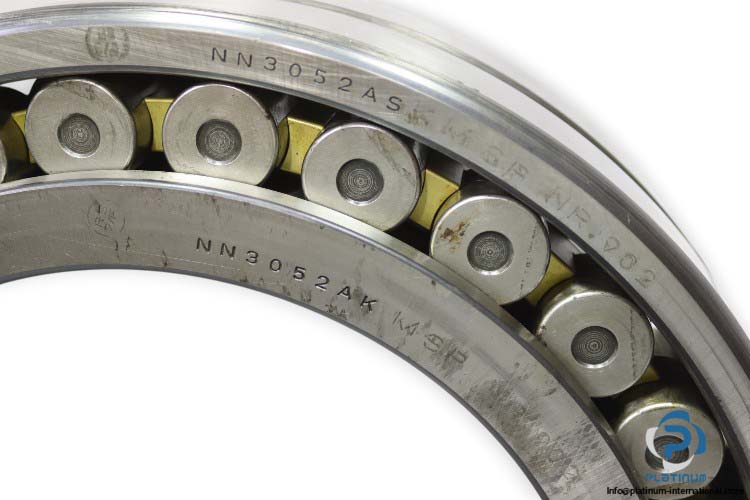

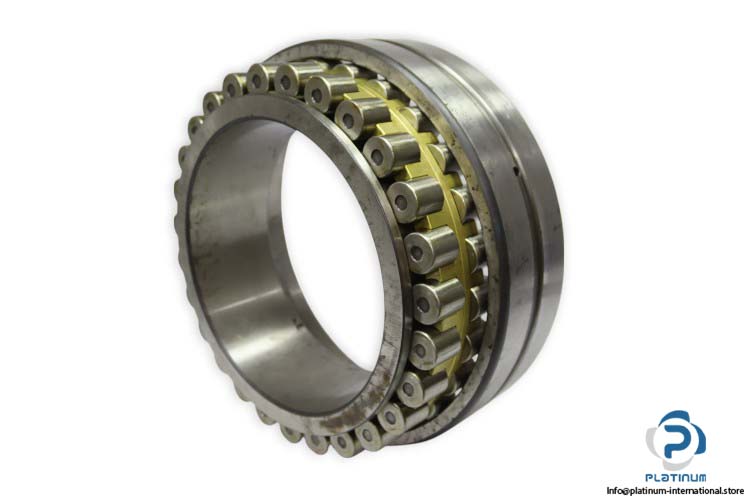

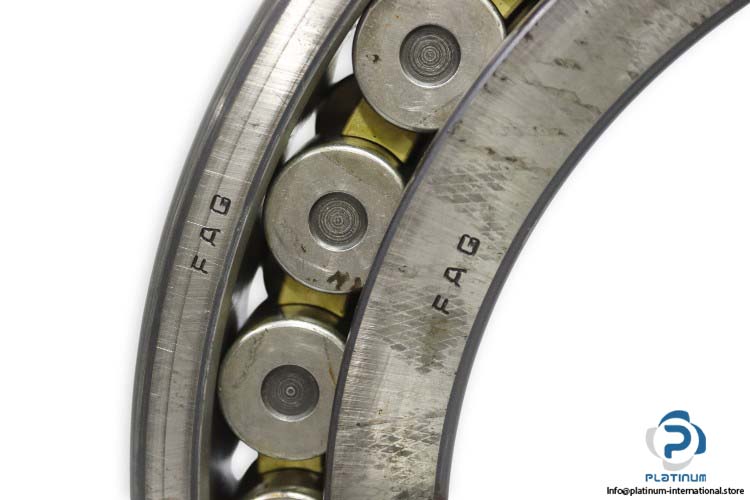

FAG NN 3052 ASKM.SP.NR.902 CYLINDRICAL ROLLER BEARING
The FAG NN 3052 ASKM.SP.NR.902 is a precision cylindrical roller bearing engineered for heavy-duty applications. With high load ratings, tapered bore, and brass cage construction, it delivers superior performance and reliability under demanding operating conditions.
Manufacturer: FAG
Type: Cylindrical Roller Bearing
Model: NN 3052 ASKM.SP.NR.902
Technical Information
- Bore Diameter (d): 260 mm
- Outer Diameter (D): 400 mm
- Width (B): 104 mm
- Dynamic Load Rating (Cr): 1,070,000 N
- Static Load Rating (C0r): 2,010,000 N
- Fatigue Load Limit (radial): 223,000 N
- Limiting Speed (Grease): 1,930 1/min
- Limiting Speed (Oil): 2,280 1/min
- Cage Material: Brass Cage
- Bore Type: K, Tapered, taper 1:12
- Tolerance Class: SP
- Design: NR, Snap ring groove and snap ring
