Manufacturer: Schaeffler FAG

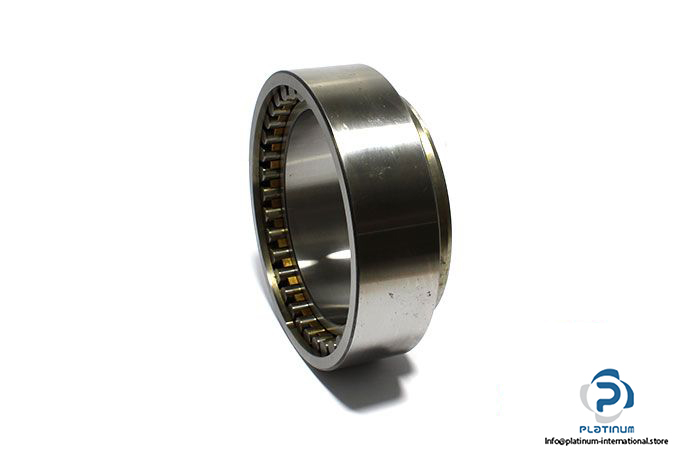

Type: Super precision cylindrical roller bearing, double row, with tapered bore, separable
Model: NNU 4936 K M SP
Replaces: NNU4936K.M.SP

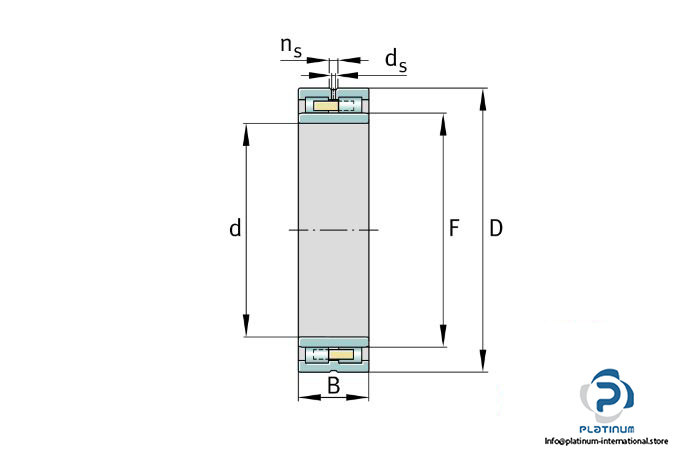

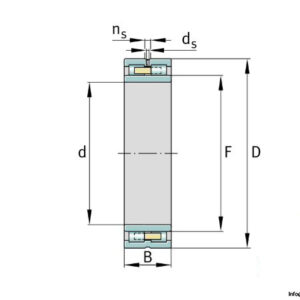

Dimensions:
Bore Diameter d: 180 mm
Outer diameter D: 250 mm
Width B: 69 mm
Minimum chamfer dimension rmin: 2 mm
Basic load ratings:
Dynamic Cr: 405000 N
Static C0r: 860000 N
Fatigue load rating: 104000 N
Limiting speed:
Grease lubrication: 3000 rpm
Oil lubrication: 3550 rpm
Cage Material: Brass Cage
Bore type: Tapered, taper 1:12
Operating temperature: -30 … +150 °C
Tolerance class: SP
Weight: 10 kg
